ProfiNet diagnostic device PROlinetest

for industrial networkshandheld

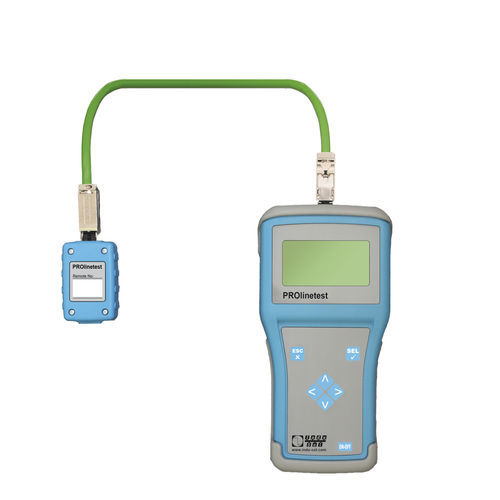

PROlinetest: Accurate Detection of Installation Problems to the Meter The PROlinetest supports troubleshooting and the installation of PROFINET/Ethernet networks with copper lines. This diagnostic tool for physical offline analysis inspects wire pairs and shielding for proper configuration. The continuity tester measures the total cable length and helps locate installation problems with meter-level accuracy. Thanks to the integrated, configurable cable database, which includes common configurations like PROFINET, T-568A, and T-568B, unknown cables and wiring diagrams are a thing of the past. Key Features: Detection of all wiring mistakes Integrated cable database with predefined PROFINET profiles Measurement of cable lengths up to 150 m (TDR time domain reflectometer) Error location (interruptions/short circuits) Power over Ethernet load test (IEEE802.3af) Note: Certification according to Class or Cat 5e is not possible with this tester. For this, we recommend the ETHERtest V5.
