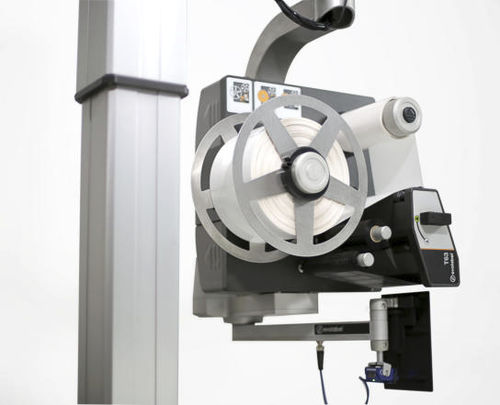

The latest design of Pallet labeller is safe, user friendly, extremely compact, fast and future proof for all your pallet labelling needs. The FlexWipe is future proof due to both the compact nature of the unit and the same applicator can label all three sides. The FlexWipe Pallet Labelling System is built upon two rotating movements. The inner arm can rotate 360º and the labels can leave the printer in two directions. The outer arm can rotate 200º. A camera based scanner is located behind the applicator pad. When a validation check scan is required the arm moves away from the pallet and the outer arm turns 180º to take a picture of the label. The FlexWipe Pallet Labelling System is fully compatible with Evolabel’s existing industry standard T63 printer, using the same Evolabel standard applicator interface as with all the other applicators in the range.
Advantages of the Pallet Flex Wipe System:
• Non dangerous. Operator can’t get stuck between applicator arm and pallet.
• Negates the need for expensive guarding.
• The paper roll always point towards the operator.
• Same machine configuration regardless of application (front/side/ back)
• One stop for two side labelling.
• Motorized and controlled movements both horizontally and vertically.
• Lightweight arms make the applicator fast but hazard free.
• The applicator can label three sides without having the pallet to stop if check scanning is not required.
• Built in Validation check scan
• Operational down to -20c
