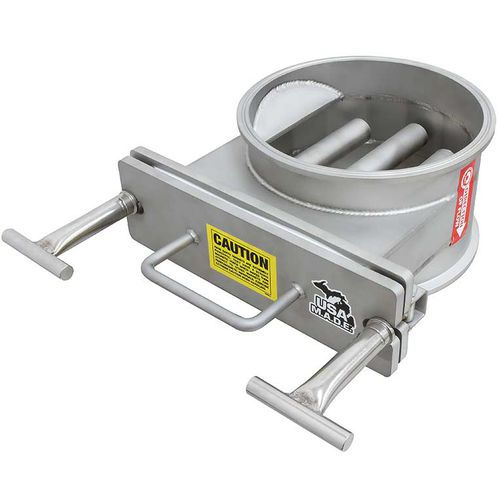

Ferrous metal separator Opti series

dry materialsmagnetic gratemagnetic tube

Our Round Drawer-In-Housing magnetic separators are designed for ferrous metal separation in processing systems. The Round Drawer-In-Housing Series is an in-stream magnet for dry, free flowing powders and granular products. Ideal for markets such as food, feed, grain and plastics, separation is achieved with magnetic tubes assembled in a drawer configuration. Ideal for low-profile applications The Round Housing comes standard models feature one or two rows of magnetic tubes. Taller model features (2) rows of tubes aligned on alternating centers, wherein the product will flow in a zigzag pattern while contacting the magnetic tubes. The cascade effect ensures maximum tramp metal separation by forcing product to repeatedly contact the magnetic tubes for optimum separation. An all-welded stainless-steel housing featuring a food-grade finish includes a silicone gasket with T-handle clamps for positive sealing. The Round Housing is available with inlet/outlet sizes in 4", 5”, 6" and 8" diameter. Sidewall diverters increase product contact with magnetic surfaces, and a drawer guard prevents product from shelving. Features •All welded stainless steel housing •Food grade finish and construction •Silicone gasket with T-handle clamps for positive seal •Standard inlet/outlet sizes in 4", 6" and 8" diameter •Available in 1 & 2 row magnet configurations •Magnetic tubes are located on 2" centers within each row •Sidewall diverters to increase product contact with magnetic surface •Drawer guard to prevent product shelving Options •Custom designed inlet and/or outlet flanges •Tubes located on 3" centers for difficult flow products
