Mobile fume extractor PFC8
weldingcartridgewith extraction arm

mobile fume extractor
mobile fume extractor
Add to favorites
Compare this product


Characteristics

Mobility
mobile
Applications
welding
Filter type
cartridge
Other characteristics
with extraction arm, dust
Airflow

Max.: 1,000 ft³/min
(28 m³/min)

Min.: 800 ft³/min
(23 m³/min)

Description

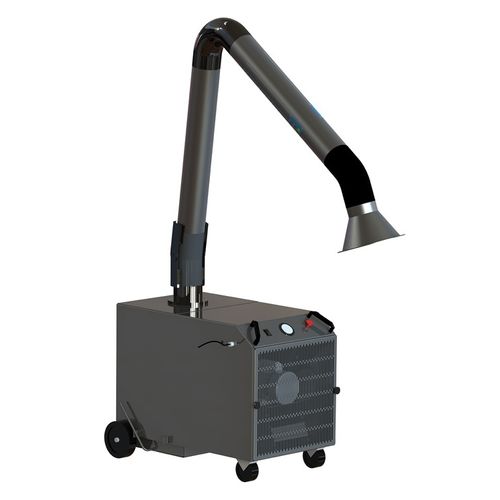

PFC8 $6,078.00 FREE SHIPPING TO CONTINENTAL US Our Model PFC8 Portable Fume collector featured here is an 800 CFM fully portable base unit with a 6″ x 10′ Z-Max fume arm with hood standard. An optional upgrade to an 8″ diameter fume arm increases CFM to 1000. 12 & 14 powder-coated steel construction with on/off switch & 20′ cord. 5″ swivel casters with brakes on front, 10″ rear wheels. External dust tray. The motor is a 1 HP direct drive high efficiency motor with manual thermal overload mated with high efficiency direct drive non-sparking composite BI wheel. 250 sf flame retardant 80/20 cell poly cartridge filter. Tool-less filter service and maintenance. Price Includes: (1) Minihelic Filter Service Gauge (1) Filter Hammer Internal Cleaning System Add-ons 8″ x 10 ft extraction arm in lieu of standard 6″ arm ($329.00) Nano Nanofiber cartridge in lieu of standard 80/20, 200 SF ($62.00) 3 Phase 230/460/3/60 TEFC motor in lieu of standard 115/230/1/60 TEFC (* wired to jct box, requires motor starter, see accessories) Carbon – Adds 24″ x 24″ x 2″ carbon impregnated pad to outlet ($91.00) Acoustic Pad – Adds acoustic pad to outlet ($19.00) Hepa – Adds 24 x 24 x 6, 99.97% HEPA afterfilter ($595.00) Minihelic 0-5″ flushmount minihelic gauge ($205.00) Deflection Panel – Right angle silencer/exhaust panel, directs are downward, adds 6″ to length. Not for use with afterfilters. ($502.00)
