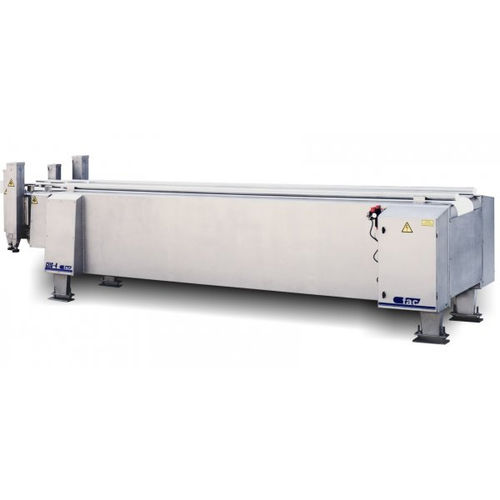

Belt conveyor CEIS series

transportloadingunloading

EXTENSIBLE MOVING BELT TO HELP IN THE LOADING AND UNLOADING PRODUCTS LENGHT UP TO 16 Mt Adjustable and automatic extension belt. Fixed base over four feed and 2 extensions in projection. This belt can reach upon 8 meters lenght over the fixed base. The extensions starts automatical via pushbuttons. You can increase or reduce the belt at your convenience. The belt allows the loading or unloading all kind of products whether they are fresh or frozen.. Composed by enclosed modules with sliding track for the belt, 1 fixed base and some extensible projections. Fixed base is composed by sliding guides for the extensions, equipped with gear motor drive and transfer for the PVC conveyor belt. Fixed base over four feed. Base and first extension have drive equipement. All extensions includes pneumatic and adjustable feed. - Electrical system complies with the standards rules of low tension, switching at 24 V, IP65 protection. - Conveyor belt built in PVC, Toothed Belt . - Automatic extension ellectrically powered. - Control switches in both sides of the belt. - Drive powered for each projection. - Pneumatic feed in each projection. - Pneumatic equipment for regulation and control. - Guides for the product. - Built in stainless steel AISI-304.
