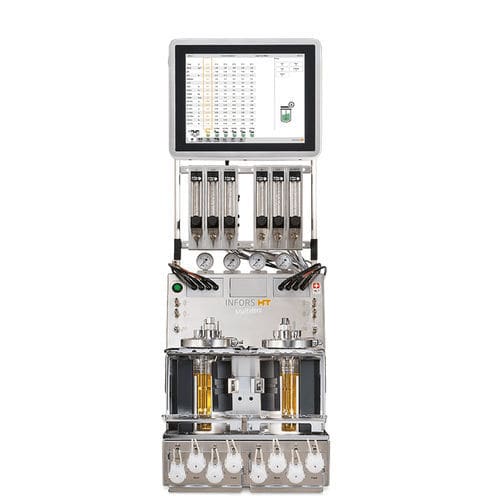

With Multifors 2 you can work with up to six bioprocesses in parallel. Thanks to a selection of preconfigured packages and a variety of connection possibilities and options, you will be ideally equipped for optimizing sophisticated bioprocesses on a small scale.
Features
High-performance pumps -
•Basic setup includes four precision pumps per culture vessel (option of one more)
•Autoclavable pump heads
•Gravimetric feeding (with external scale)
•Profile-based pump-speed control with eve®
Culture vessels -
•Culture vessels are easy to exchange
•Powerful magnetic drive
•Magnetic coupling reduces the risk of contamination and simplifies handling
Top plate -
•Motor underneath the vessel for excellent accessibility to available ports
•Up to 13 ports for sensors (antifoam, optical density, pH, pO2, redox, conductivity, live cell density, etc.)
Gassing -
•Customer-specific gassing with up to 5 gas lines
•Feed via rotameter or mass-flow regulator
•Cascades may be configured in serial or in parallel for controlling the pO2 via the stirrer speed, gassing rate, gas composition, etc.
Sensors -
•Customers may choose from digital (Modbus) or analog sensors.
•Product calibration of the pH sensor for reliable measurements during long-running bioprocesses
•If required, additional sensors and actuators can be connected.
12" Touchscreen Controller -
•Touchscreen with integrated OPC server
•Reliable measurement and setting of the bioprocess parameters and communication with eve®
•Parallel management and control of up to six devices
•Up to 24 selectable parameters, such as temperature, stirring speed, pH, pO2, anti-foaming agent, feed
