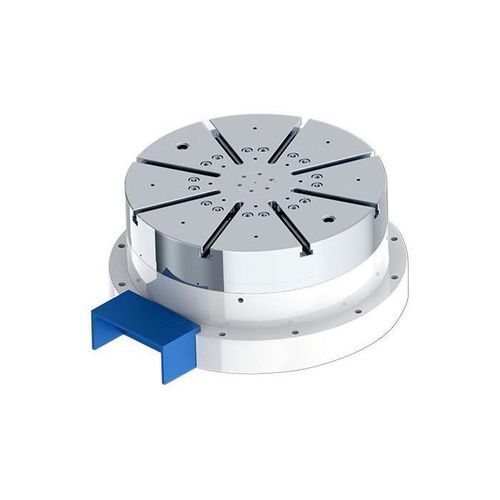

Motor-driven rotary table SDD-465-75-2.2

horizontalverticalcompact

Overview
Single-axis horizontal and vertical rotary tables from the SDD series integrate a play-free torque motor and engineered bearing structures. Motor housing and positioning system are designed and manufactured to meet tight precision and long service-life requirements. The innovative clamping concept enables a compact layout and offers faster response and higher rigidity compared with conventional disk-brake solutions.

Features

• Play-free direct-drive torque motors
• Stable torque over long-duration and high-load operation
• Fast, dynamic response suitable for automated machining tasks
• Smooth, low-noise operation and extended service life

Available models (table)
Picture | Max. Speed [rpm] | Max. torque [Nm] | Power S1 [kW] | Dia [mm] | Center height [mm] | Max. load [kg] | System integrated | Model | Download PDF
SDD-465-75-2.2-1.png | 75 | 859,5 | 2,2 | 465 | / | 1000 | Siemens | SDD-465-75-2.2 | SDD-465-75-2.2.pdf
SDD-465-75-2.2-2.png | 200 | 748 | 5,3 | 255 | 160 | 120 | Fanuc | SDD-255-200-5.3 | SDD-235-200-5.3.pdf
SDD-180-250-1.35A.png | 250 | 276 | 1,35 | 180 | 135 | 50 | Fanuc | SDD-180-250-1.35A | SDD-180-250-1.35A.pdf
SDD-180-250-1.35B.png | 250 | 276 | 1,35 | 180 | 135 | 50 | Siemens | SDD-180-250-1.35B | SDD-180-250-1.35B.pdf
SDD-180-250-1.35C.png | 250 | 276 | 1,35 | 180 | 135 | 50 | Mitsubishi | SDD-180-250-1.35C | SDD-180-250-1.35C.pdf
SDD-125-400-0.42.png | 400 | 112,8 | 0,42 | 125 | 110 | 30 | Fanuc, Mitsubishi, Siemens | SDD-125-400-0.42 | SDD-125-400-0.42.pdf

Technical specifications

• Product family: Single Axis Direct Drive Series (SDD)
• Drive type: Torque motor (direct drive), play-free
• Design: Horizontal and vertical rotary tables with innovative clamping structure
• Key attributes: high positioning accuracy, high stability, fast response, energy-efficient operation, long service life
• Representative data: see table above (Max. Speed, Max. torque, Power S1, Diameter, Center height, Max. load, System integrated)
• Typical integrated controllers: Siemens, Fanuc, Mitsubishi (model-dependent)
• Maximum load example: up to 1000 kg (SDD-465-75-2.2)
