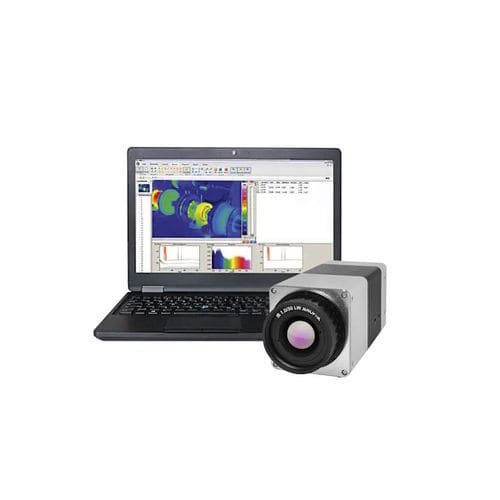

Thermal imaging camera VarioCAM® HD head 900
infraredmicrobolometerCCD

thermal imaging camera
thermal imaging camera
Add to favorites
Compare this product

Characteristics

Function
thermal imaging
Spectrum
infrared
Sensor
microbolometer, CCD
Interface
GigE
Other characteristics
uncooled

Description

With its 3.1 megapixels in IR-format the worldwide unique infrared system VarioCAM ® HD head 900 gives a new definition to the premium segment of uncooled industrial cameras and guarantees for precise infrared recordings in brilliant photographic quality. Image format: (2,048 x 1,024) IR pixel optomechanical MicroScan feature Recording and storage of IR frames rates with up to 240 Hz GigE- and process interface Rugged light metal housing IP67* Geometric Resolution of 3.1 Megapixels Due to an Integrated MicroScan Feature The MicroScan technology works opto-mechanical and is designed for permanent operation. Due to FPA detectors of the latest generation with (1,024 × 768) IR pixels, this technology allows for a quadruplication of IR measurement pixels. They show real temperature values but not interpolated pixels. This opens up several new fields of application. Old measurement tasks become more efficient and therefore, valuable working time and costs are saved. Large-scale or far-flung measurement objects can now be recorded in one, fast, precise and complete recording due to the unique MicroScan technology.
