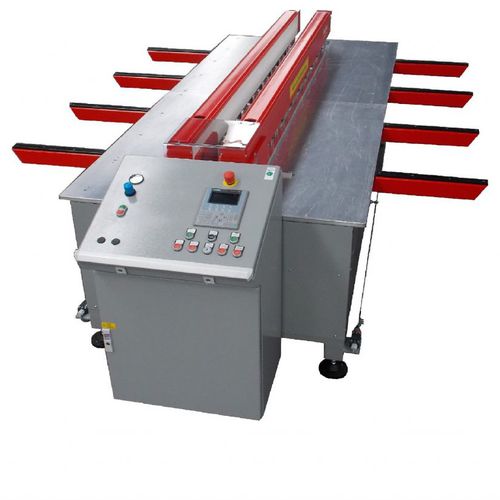

Butt welding machine S Econo

automatic

Butt-Welding Machine S econo The S econo series has been devised for the middle range of use. An integrated PLC controls the machine. During welding all the times set by the operator can be lengthened or shortened at the touch of a button. Machines of this series are fitted out with a CNC table force controller, including database. They can also be provided with an automatic 90° welding fixture at the customer’s request. This machine can also be optionally equipped with a semi-automatic 90° welding fixture. This machine comes in the following versions: 2 m, 3 m and 4 m or customized Weldable thicknesses: 3 – 25 mm Extra S econo Equipment INGENIA online diagnostic system Illumination of the welding range Scale on both table sides Extension to a 65 mm clamping height e.g. for hollow chamber boards Plastic sheet lifter (only one side) Equipment for concrete protection liners incl. sheet lifter, clamping beam raiser & tool set Remote control or foot-operated switch for clamping Acoustic signal once the welding cycle is over Extra clamping range for both sides (2 areas) Semi-automatic 90° L-angle welding fixture Sheet roller Non-standard paint finish
