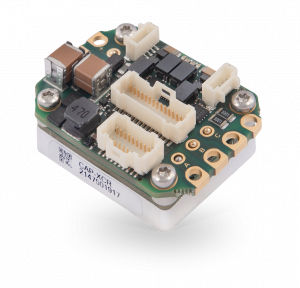

EtherCAT servo drive CAPITAN XCR-E

DCPWMdigital

CAPITAN XCR-E: PANEL MOUNT, ETHERCAT SERVO DRIVE CAPITAN XCR ETHERCAT SERVO DRIVE HIGHLIGHTS • Miniature design for critical size robotic applications • Ultra-low standby power consumption • Dual loop support for unparalleled precision • PWM frequency up to 200 kHz for low inductance motors • Ultra-fast servo loops for smooth operation DISCOVER THE CAPITAN XCR ETHERCAT SERVO DRIVE The Capitan XCR is an ultra-compact, ready to use, high power density, EtherCAT servo drive. Optimized with an extremely low profile and light weight, allowing for easy integration in compact robotic joints, flat actuators, end-effector actuators, surgical robots, exoskeletons, gimbals, and haptic applications. The Capitan XCR servo drive is designed with the most advanced transistor technology in the world, delivering the highest power density and efficiency. PWM frequencies up to 200 kHz, while maintaining negligible EMI, provides best-in-class performance. A variant of the Capitan XCR is also available with CANopen communications. ROBOT JOINTS AND ACTUATOR INTEGRATION Capitan XCR is built ready to be integrated inside robot joints or actuators and can be easily fixed to your mechanical enclosure through provided screw holes. Its aluminum frame ensures optimal heat dissipation. DUAL OR SINGLE POWER SUPPLY The Capitan XCR can be powered from a single or dual power supply (separate logic and power). Using the dual supply, with a low logic voltage, allows you to reduce power consumption of the drive in standby operation. OPTIMIZED FOR A PREMIUM PERFORMANCE The Capitan Series EtherCAT communications latency has been optimized to maximize system responsiveness.
