DC servo drive i211A

PWMdigitalCANopen

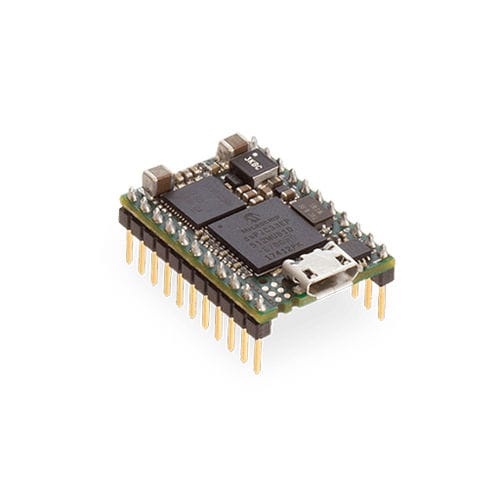

I211A CUSTOM PAN TILT SERVO DRIVE ♦ Ultra-miniature motor drive and controller • Supports digital hall and incremental encoder • Position, speed and current control • Programmable functions • PCB mount design I211A CUSTOM SERVO DRIVE HIGHLIGHTS The i211A Custom Servo Drive is a compact solution designed to control servo systems based on brushless and brushed motors. It has been designed with the objectives of high control performance, very high energy efficiency, low standby loss, minimal size, robustness and optimized cost. It provides fully featured motion control for brushless and brushed motors with hall sensors and encoders. Can be controlled in torque, velocity and position mode. It can be directly wired or mounted on a base board, the connectors are conveniently placed on a 2.54 mm standard grid. The servo drive can be easily interfaced with multiple networks: USB, RS-232 and CANopen in field. It can also be programmed with standalone macros for many functionalities using It can control 100 W of continuous power and up to 180 W of peak power, Earth Servo Drive has been designed with efficiency in mind to minimize self-heating and standby power loss. It incorporates cutting-edge power power budged management together with a fully rugged (against short-circuits, ove-temperature, overload, over and under voltage) high efficiency power stage as well as optimized control algorithms to provide the perfect trade-off between electromagnetic emissions and performance.
