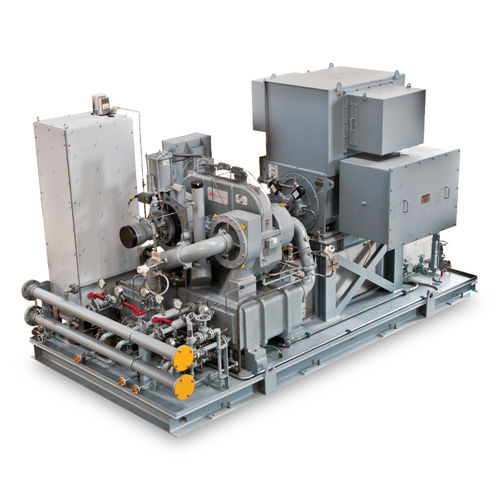

Centrifugal compressor MSG® TURBO-AIR®
airelectrically-poweredstationary

centrifugal compressor
centrifugal compressor
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Pressure

Max.: 14.5 bar
(210.3 psi)

Min.: 3.5 bar
(50.76 psi)

Flow

Max.: 430 m³/min
(15,185.31 ft³/min)

Min.: 14.3 m³/min
(505 ft³/min)

Power

Max.: 2,237 kW
(3,041.47 hp)

Min.: 93 kW
(126.44 hp)

Description

We have a long-standing tradition of providing innovative products and technology that positively affect our customer’s bottom line. Following in this tradition, the API 672 custom MSG TURBO-AIR API range has been developed through close interaction with our customer base and analysis of their individual application demands. American Petroleum Institute (API) Standards Compliance: The list below outlines examples of common API compliance standards for integrally geared centrifugal compressors. We have robust capability to engineer and manufacture compressor packages to comply to additonal standards as required on an application-specific basis. API 672 for packaged, integrally geared centrifugal compressors for petroleum, chemical and gas industry services API 614 for lubrication systems API 670 for machinery protection systems API 671 for coupling systems Oil-Free, Risk Free The first to be certified ISO 8573-1:2001 Class 0, our oil-free centrifugal compressors offer efficient, economical and reliable solutions for delivering compressed air. These high-performing, versatile compressors provide 100% oil-free air in all operating conditions.
