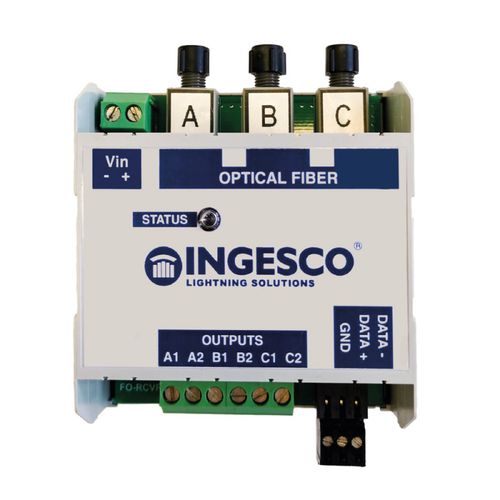

Fiber optic receiver DL EOLOS FO-RCVR

for lightingRS-485Modbus

FIBRE OPTICS RECEIVERS FOR THE DL EOLOS K15FO HIGH BANDWIDTH LIGHTNING COUNTERS Fibre optics receivers for receiving lightning detection notifications sent by DL EOLOS K15FO series high bandwidth lightning counters. Fibre optics receivers from the DL EOLOS RCVR-DIN series allow to receive the lightning detection notification signals sent by up to three DL EOLOS K15FO series high bandwidth lightning counters. These devices have been designed for installation on DIN rail in electric cabinets. The DL EOLOS RCVR-DIN series fibre optics receivers can send the lightning detection notifications to programmable logic controllers (PLC), Scada and other automation devices Characteristics DL EOLOS FORCVR-DIN series fibre optics receivers support up to three fibre optic inputs and up to three relay outputs, each one associated to one input. These devices receive the notification signals sent by DL EOLOS K15FO series lightning counters and produce a programmable-width output pulse in the relay output. The DL EOLOS FORCVR-DIN receiver provides a set of counter registers which are updated when lightning detection notifications are received. These registers can be read through the device’s Modbus RTU over RS485 interface. • Two models available, with one or three fibre optics inputs. • Galvanically isolated, normally open contact relay outputs. • Relays operation in normal or inverted logic. • Vibration resistant connectors. • Installation in standard 35 mm DIN rail. • Operation and connection states indication LED.
