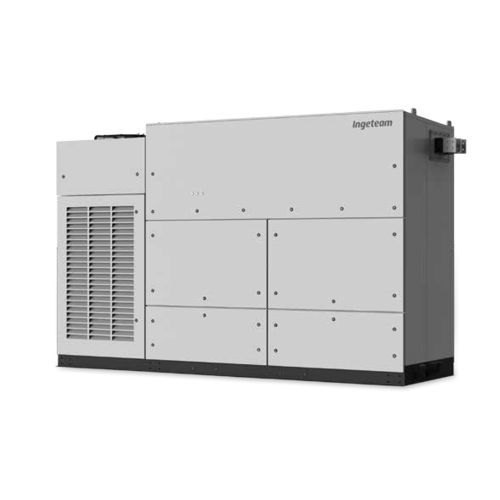

In-line AVR DC/AC inverter 3Power C Series
powerlow-voltageshort-circuit proof

in-line AVR DC/AC inverter
in-line AVR DC/AC inverter
Add to favorites
Compare this product


Characteristics

Type
in-line AVR
Electrical characteristics
power, low-voltage, short-circuit proof, with surge protection
Applications
for solar applications
Power

9,000 W

Output power kVA

Min.: 2,858 kVA
(3,885.7973 hp)

Max.: 3,824 kVA
(5,199.1913 hp)

Voltage

1,500 V

Primary current

3,965 A

Description

Greater power densityThis solar PV inverter achieves a marketleading power density of 492 kVA/m3, asit provides up to 3,825 kVA kVA in justone power stack.Latest generation electronicsThe INGECON® SUN 3Power C SeriesPV inverter features an innovative controlunit that performs a more efficient andsophisticated inverter control, as it usesa last-generation digital signal processor.Liquid Cooling System (LCS)Ingeteam has already supplied +52 GWof liquid-cooled wind power convertersworldwide. It offers a greater thermal stability and a more optimized componentusage. The LCS has been designed torefrigerate the IGBTs, the power phasesand the IP65 compartment. It featuresless moving components, so it consumes a lower amount of power and itrequires less maintenance works.The LCS is a closed circuit supplied totally filled and purged, equipped with fastconnectors with an anti-dripping system,so it offers zero risk of particle entrance.It has been designed to avoid siphonsin order to easily purge it if necessary.The coolant used is a biodegradable glycol water mixture. There is no need ofemptying the LCS in order to replace thephases, nor the sensors.
