5 - 10 kW solar power plant FSK C Series

container

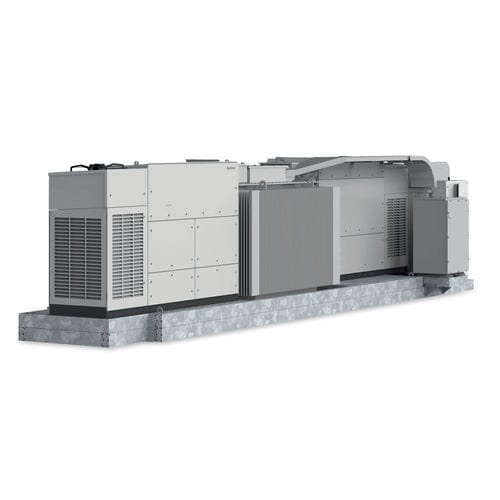

Medium-voltage power station up to 7.65 MW, equipped with everything your project needs: one or two INGECON SUN C Series inverters, a step-up transformer, oil deposit, auxiliary services panel, medium-voltage switchgear, and auxiliary services transformer. Thanks to its plug-and-play design, it is supplied as a turnkey solution, ready for field installation. Technical data Max. power @35 ºC - 7,650 kVA @690 Vac Operating ambient temperature range - -40º C to +50º C Rated current - 630 A Medium voltage - 24 / 36 / 40.5 kV Dimensions Full Skid (W x D x H) - 11,390 x 2,600 x 2,620 mm Weight - 25 Tons
