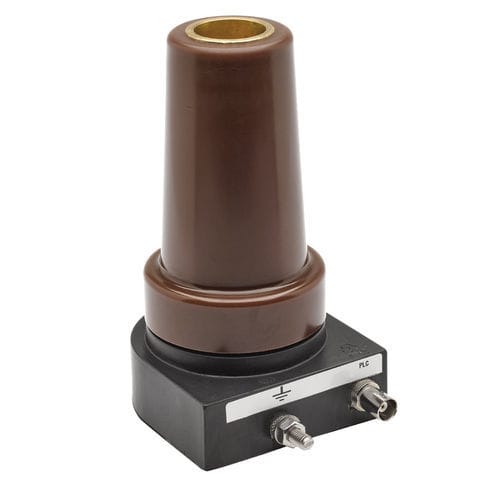

Data connector INGEPAC™ SR PG
medium-voltagePLCcost-effective

Data connector - INGEPAC™ SR PG - Ingeteam GmbH - medium-voltage / PLC / cost-effective
Data connector - INGEPAC™ SR PG - Ingeteam GmbH - medium-voltage / PLC / cost-effective
Add to favorites
Compare this product

Characteristics

Type
data
Electrical characteristics
medium-voltage
Product applications
PLC
Domain
cost-effective
Protection class
IP65
Voltage

11 kV, 13.2 kV, 15 kV, 20 kV

Description

INGEPAC™ SR PG is a device that allows PLC communications coupling in gas-insulated switchgear, being able to transmit and receive in the 1-32 MHz range. PLC couplers enable a cost-effective private communication channel over the medium voltage cable feeders. •Frequency range: 1-32 MHz •Accuracy: ±1 º for the defined temperature range •Insertion: type C symmetrical T connector •Transformation ratio: 10,000:1 •Protection level in primary area: IP65 •Primary area material: resin •Power consumed: <3 W
