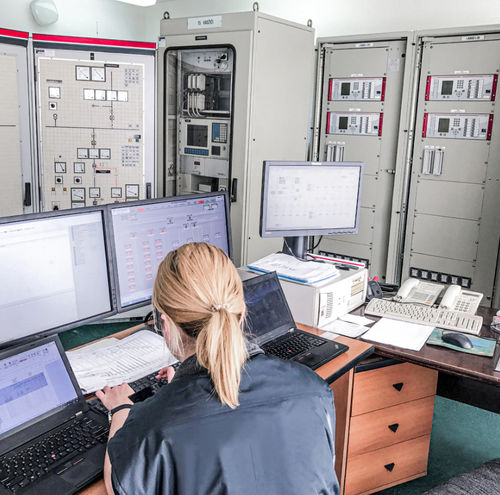

Monitoring software INGESYS™ IT

data acquisitioncontrolmanagement

INGESYS IT is a set of software applications designed to develop substation supervisory control and data acquisition (SCADA) systems and human-machine interfaces (HMI). Real-time supervision Monitoring, anomaly detection and remote diagnostics Redundant solutions At communications, node and server levels Secure, flexible and scalable system Use of the main protocols: IEC 61850, DNP3, Modbus Main features INGESYS IT Substation HMI / SCADA Graphical representation of data and measurements with simulation of the substation’s dynamic mimic diagrams. - HTML5 based web operation panels with JavaScript support, compatible with the latest browsers. - Presentation, management, acknowledgement and storage of substation alarms and events. - Alarm notification via email or SMS, based on shift calendar and severity rules. - Management of communications with all the position control units via an IEC 61850 client for controlling, operating, configuring and signalling all the positions in the substation. - Management of user access levels based on profiles, with restricted controls and access configurations. - Store and display of historical metering data logging. - Periodic Excel reports based on historical data. - SNMP for managing the communications network. - High availability thanks to redundant communication mechanisms and to the node’s redundancy. - Communication with different VLANs via IEEE 802.1Q. Characteristics Operating panels display Data and history management Alarm and event management Reports and data analysis (Excel reports) Alarm notification via email or SMS Web access, access control and user profiles Acquisition of switch maintenance parameters
