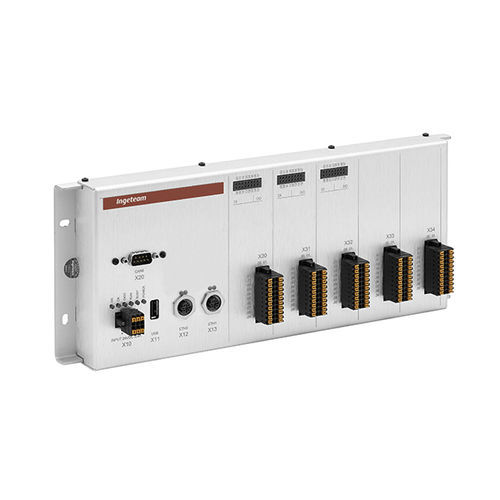

Monitoring control system INGESYS™ IC2

automationindustrialcustom-made

INGESYS IC2 is a control system that meets the automation needs present in the train subsystems (HVAC, DCU, Galley, Wipers, toilets, etc.). Compact and robust design Tailored solution with optimal cost Compliance with traction standards Technical data Main Processor - 32bit, Dual Core 800Mhz Program - IEC61131-3 (specific functions, communication and regulation library), C/C+Matlab/Simulink Monitoring and maintenance - Embedded Web Server LAN - 2 Ethernet 10/100Base TX M12 (sin que ponga internal switch) 1 Additional ethernet 10/100Base TX M12 (optional) Protocols: Modbus TCP/UDP, TRDP, Ethernet/IP, PROFINET I/O Field buses - Up to 4 selectable Ports per CPU: CAN (CANOpen M/S,CANRaw) Profibus DP, MODBUS RTU, RS232/RS485, MVB ESD+, MVB EMD Temperature Range - EN 50155:2021 [Class OT4 (-40ºC at +70ºC Fire protection - EN 45545-2:2020+A1:2023 Characteristics Custom-made solution It offers two possible architectures depending on its application: a compact architecture, aimed at controlling applications with fewer inputs/outputs and limited space, and a distributed architecture with I/Os deployed via standard fieldbuses. Connectivity It includes a wide range of interfaces and the most commonly used communication buses and protocols in the railway field (RS232/485, CAN, MVB/WTB, ETHERNET TCP/UDP, ETHERNET/IP, TRDP, PROFINET, etc.), enabling integration within the most common communications networks on the market. It also provides the option to work as an RTU (remote terminal unit) in distributed applications, offering the most widely used protocols in this domain.
