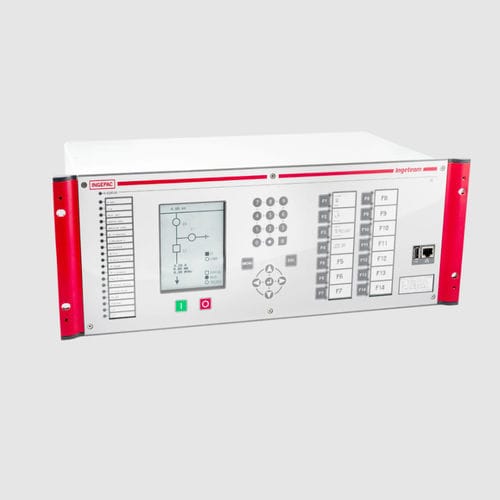

Phase loss protection relay INGEPAC EF ZT
under-currentearth-leakagedistance

Phase loss protection relay - INGEPAC EF ZT - Ingeteam GmbH - under-current / earth-leakage / distance
Phase loss protection relay - INGEPAC EF ZT - Ingeteam GmbH - under-current / earth-leakage / distance
Add to favorites
Compare this product

Characteristics

Measured/monitored value
earth-leakage, under-current, thermal, power, phase loss, distance
Network
three-phase
Applications
for transformers, transmission line
Communication
RS485, Ethernet, USB, Modbus
Norms
IEC
Other characteristics
digital, programmable, configurable, multifunction

Description

Product overview
  • Distance protection relay Ingeteam INGEPAC EF ZT
  • Category: Distance protection for transmission lines
  • Manufacturer: Ingeteam


Protection functions
  • 21 Quadrilateral and MHO
  • 21 High-speed elements
  • Zone 1 reach extension
  • Adaptation for double lines, series compensation and lines with capacitive voltage transformers
  • Transformer backup protection


Other functions
  • 3x50/51 (67), 50N/51N (67N)
  • 50G/51G
  • 46TOC (67Q), 46IOC (67Q)
  • 46FA Open phase detection
  • 50CSC 2nd-harmonic braking
  • SOTF Switch-on overfault
  • 27, 59, 59N, 47, undervoltage
  • 81M/m, 81 ROCOF
  • 37 Undercurrent
  • 49 Thermal image
  • 32 Power
  • Tap changer
  • 85 Teleprotection (21, 67/67Q)
  • 68ZC, 68FF
  • 78 Power oscillation
  • 25 Synchronism
  • 79 Single/tripolar
  • 50 BF Breaker failure (single/tripolar)
  • Fault locator
  • Breaker supervision


Features
  • Native IEC 61850 platform
  • High-precision measurement, data acquisition and oscillographic recording
  • Protocols: IEC 61850, DNP 3.0, IEC 870-5-103/104, Modbus, PROCOME
  • Network redundancy: PRP, HSR or link-failure detection
  • Automation and logic under IEC 61131-3
  • Multicast Sampled Values (MSV) capture per IEC 61850-9-2 or IEC 61869-9
  • Time synchronization: SNTP, IEEE 1588 v2 (PTP), IRIG-B or PPS
  • Configuration tool: pacFactory
  • Integrated display


Cybersecurity
  • Compliant with IEC 62351, IEC 62443 and IEEE 1686-2013
  • User account management
  • Role-based access control (RBAC)
  • Access attempt limits
  • Session management
  • Security audit and logs (syslog)
  • Enable/disable communication ports
  • Software and firmware update management
  • Cryptography: HTTPS, SFTP, SSH, CMS/PKCS#7
  • Secure web access (HTTPS) and SFTP
  • Malware protection
  • Firewall
  • Security certificates (LDAP)


Key data and applications
  • Phase-segregated distance protection: discrimination between three-phase, two-phase and earth faults
  • Multiple breaker schemes: breaker-and-a-half, ring or double breaker configurations
  • Teleprotection schemes: stepped trip, PUTT, POTT, DCB, DCUB
  • Designed for protection of single transmission lines, ringed lines or breaker-and-a-half schemes


Technical specifications
  • 5 configurable protection zones (MHO and/or quadrilateral)
  • Distance functions: 21 MHO/quadrilateral, zone 1 extension and high-speed elements
  • Extensive complementary protection functions (see "Other functions")
  • Communication protocols: IEC 61850, DNP 3.0, IEC 870-5-103/104, Modbus, PROCOME
  • Network redundancy: PRP, HSR or link-failure detection
  • MSV capture compliant with IEC 61850-9-2 / IEC 61869-9
  • Synchronization: SNTP, IEEE 1588 v2 (PTP), IRIG-B, PPS
  • Programmable logic and automation: IEC 61131-3
  • Oscillographic recording and high-precision data acquisition
  • Configuration tool: pacFactory
  • Security: compliance with IEC 62351, IEC 62443, IEEE 1686-2013; RBAC; syslog; encrypted protocols (HTTPS, SFTP, SSH)
  • Teleprotection and transformer backup options
