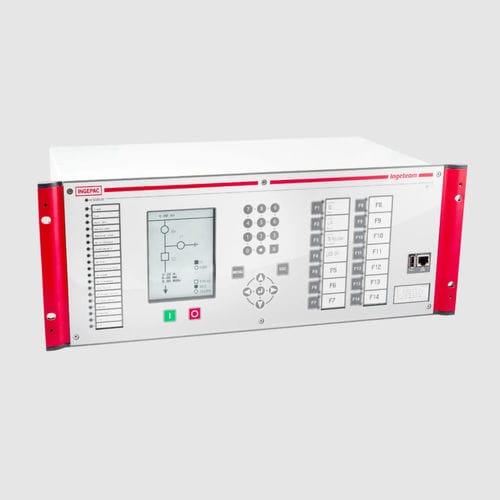

AC voltage regulator INGEPAC EF VRfor transformersdigitalautomatic
Add to favorites
Compare this product
Characteristics
- Options
- AC
- Applications
- for transformers
- Other characteristics
- automatic, digital, network stabilizing
- Power
40 W
(0.05 hp)
Description
Product type
Overview
Functions
Characteristics
Cybersecurity
Key data
Applications
Product family
Technical specifications
- Automatic voltage regulator — Ingeteam INGEPAC EF VR
Overview
- INGEPAC EF VR performs voltage regulation for transformers equipped with tap changers, maintaining stable output voltage and issuing raise/lower signals to the tap changer.
- Designed for standalone operation or parallel operation with up to 5 transformers.
Functions
- Manual and automatic voltage regulation
- Standalone or parallel operation (up to 5 transformers)
- Voltage regulator modes:
- Master/Slave regulation (communication via GOOSE)
- Reduction of circulating current (MCC)
- Load Drop Compensation (LDC-Z and LDC-R&X)
- Tap position supervision
- Verification of switching operations
- Overcurrent, overvoltage and undervoltage supervision
- Out-of-range voltage supervision
- Tap number indication via digital input (single or BCD) or EA
- External supply and battery supervision
- Optional: 49T RTD overtemperature monitoring (module for 11 RTDs and 4 A/D inputs)
Characteristics
- Native IEC 61850 platform
- High-precision measurements, data acquisition and oscillographic recording
- Supported protocols: IEC 61850, DNP3.0, IEC 870-5-103/104, Modbus, PROCOME
- Redundancy: PRP, HSR or link-failure
- Automation and logic programming per IEC 61131-3
- Synchronization options: SNTP, IEEE 1588 v2 (PTP), IRIG-B, PPS
- Configuration tool: pacFactory; integrated display available
Cybersecurity
- Compliance with IEC 62351, IEC 62443 and IEEE 1686-2013
- User account management and role-based access control (RBAC)
- Session and access attempt control, auditing and logs (syslog)
- Enable/disable communication ports and manage software/firmware updates
- Encryption and secure protocols: HTTPS, SFTP, SSH, CMS/PKCS#7
- Secure access to web interface and SFTP; malware protection and firewall
Key data
- Up to 5 transformers — suitable for independent or parallel operation
- Oil temperature monitoring via RTDs or mA input
- Programmable logic based on IEC 61131-3 for automation and control
Applications
- Grid automation, protection and control
- Smart grids and distribution automation
- Transmission and distribution substations
Product family
- Protection and Control
Technical specifications
- Voltage regulation for transformers with tap changers; raise/lower signal output to the tap changer
- Operation modes: manual and automatic
- Parallel operation: supports up to 5 transformers
- Voltage regulator modes: Master/Slave (GOOSE), MCC, LDC (LDC-Z, LDC-R&X)
- Tap change supervision and verification of switching operations
- Protections: overcurrent, overvoltage, undervoltage and out-of-range voltage supervision
- Tap number detection: digital input (single or BCD) or EA
- External supply and battery supervision
- Optional 49T RTD overtemperature monitoring with module for 11 RTDs and 4 A/D inputs
- Native IEC 61850 support; additional protocols: DNP3.0, IEC 870-5-103/104, Modbus, PROCOME
- Redundancy options: PRP, HSR or link-failure
- Programmable automation: IEC 61131-3
- Synchronization: SNTP, IEEE 1588 v2 (PTP), IRIG-B, PPS
- Data acquisition, oscillography and high-precision measurement
- Configuration: pacFactory; integrated display
- Cybersecurity: IEC 62351, IEC 62443, IEEE 1686-2013 compliance; RBAC; session control; auditing; encryption protocols
