Communication gateway INGESAS IC3

securityindustrialtelemetry

Product overview
INGESAS IC3 is a communications gateway and RTU designed to collect all substation information (alarms, statuses, measurements, counters, etc.) and send it to control centers. It also receives commands and setpoints from control centers and transmits them to the corresponding IEDs, and executes station-level logic.

Functions

• Collect all substation information (alarms, statuses, measurements, counters, etc.) and send it to different control centers following telecontrol standards.
• Receive commands and setpoints from control centers and forward them to the corresponding IEDs.
• Execute station-level logic, receiving required information from position-level IEDs.
• Develop logic using tools compliant with IEC 61131-3.
• Include cybersecurity measures: firewall, encryption, user management and access policies.
• Act as time synchronization master for connected devices via IEEE 1588, IRIG-B, SNTP or telecontrol protocols.

Models

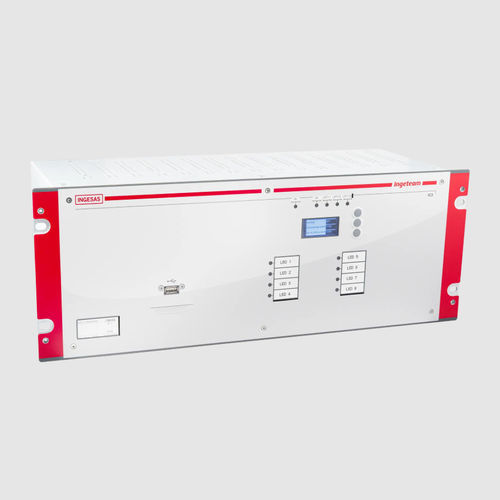

• INGESAS IC3 form factor 0: substation control unit in modular chassis with physical I/O and LED signaling.
• INGESAS IC3 form factor 4: substation control unit in high-density communications chassis.

Protocols

• IEC 61850: client / server
• IEC 60870-5-101: master / slave
• IEC 60870-5-104: client / server
• IEC 60870-5-103: master
• DNP 3.0: master / slave
• MODBUS RTU and TCP: master / slave
• PROCOME Serial and TCP: master
• OPC-UA: client / server

Cybersecurity

• Compliant with IEC 62351, IEC 62443 and IEEE 1686-2013.
• Secure communication protocols: HTTPS, SSH / SFTP, Syslog, LDAP, DNP, OPC UA.
• Use of digital certificates: HTTPS, SSH, VPN.
• TLS 1.2 encryption.
• User account management and role-based access control (RBAC).
• Control of login attempts, session management and security audits/logs (syslog).
• Enable/disable communication ports, software/firmware update management, malware protection and firewall.

Key data

• Redundancy: hot-hot, hot-standby and hot-warm.
• Integrated web server based on HTML5.
• Programmable logic according to IEC 61131-3.

Applications

• Smart Grids
• Transmission
• Distribution

Technical specifications

• Product type: Gateway and RTU for substation automation and telecontrol.
• Models: Form factor 0 (modular chassis with physical I/O and LEDs) and Form factor 4 (high-density communications chassis).
• Supported protocols: IEC 61850, IEC 60870-5-101/104/103, DNP3.0, MODBUS RTU/TCP, PROCOME Serial/TCP, OPC-UA.
• Cybersecurity: IEC 62351, IEC 62443, IEEE 1686-2013; HTTPS/SSH/SFTP; digital certificates; TLS 1.2; RBAC; syslog; firewall; patch management.
• Synchronization features: IEEE 1588, IRIG-B, SNTP.
• Integrated web server (HTML5) for visualization and operation.
• Redundancy capabilities: hot-hot, hot-standby, hot-warm.
• Product tag: SAS (Substation Automation Systems).
