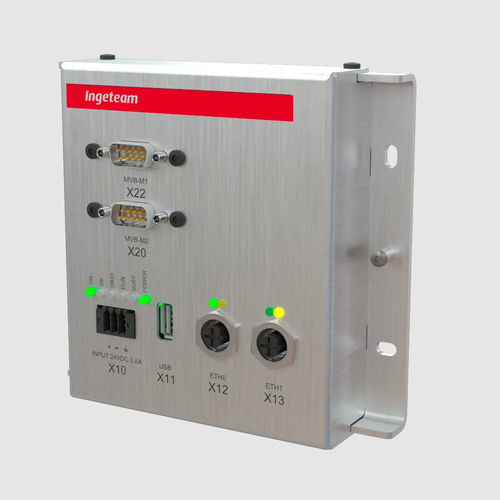

Communication gateway INGESYS GW

GSMWiFiEthernet TCP/IP

INGESYS GW meets the interconnection needs of the various smart onboard systems in trams and trains, within the most common railway communication networks in the market. Large number of physical media and protocols Flexibility and adaptability Compliance with traction standards Compact or modular solution for 19-inch rack mounting+J16 Technical data Processor - 32-bit CPU | IEC61131 programmable Field bus interfaces - Up to 4 DB9 ports | CANOPEN (Master/Slave), RS232/RS485 | MVB ESD+/EMD, and MVB OGF interfaces Ethernet interfaces - Up to 3 x 10/100Base TX Ethernet ports, M12 connectors | Protocols: UDP, TCP/IP, Modbus TCP/IP, TRDP, Ethernet IP/CIP, PROFINET I/O Additional Local I/Os - Analog and digital inputs/outputs Monitoring and maintenance - Built-in web server for diagnostics and parameterisation Standards - EN50155:2017, EN45545-3:2017 Characteristics Custom-made solution The INGESYS GW allows you to choose from a wide range of communication interfaces and decide the physical medium to be used and the required communication protocol, based on the needs of each application. Connectivity The INGESYS GW offers interconnection of the following communication interfaces: RS232, RS485, CAN, MVB/WTB, ETHERNET UDP, TCP/IP, TRDP, ETHERNETIP, CIP, PROFINET, WIFI, GSM. It features a modular architecture in which the user can select up to a maximum of 4 serial links and up to 3 Ethernet links. Optionally, it offers the possibility to incorporate local I/Os that are transmitted to the bus master node. Programming tools Together with the programming tools compatible with the IEC61131-3 standard,
