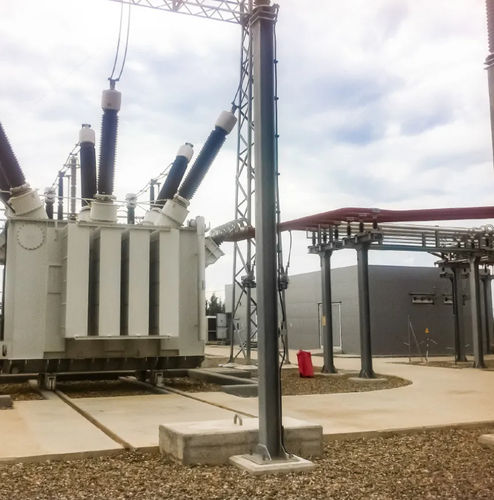

Static synchronous compensator

dynamic reactive power

Overview
INGEGRID SSSC is a Static Synchronous Series Compensator designed to provide dynamic series reactive power compensation and series voltage support on AC transmission lines.

Technical specifications

• Product name: INGEGRID SSSC
• Commercial model: INGEGRID SSSC
• Product type: Static Synchronous Series Compensator (SSSC)
• Brand: Ingeteam
• Main components: power converter, control system, coupling transformer, protection devices
• Functions: series reactive power control, damping of power oscillations, power flow modulation

Applications

• Series compensation of transmission and distribution lines
• Power flow control in interconnectors and long lines
• Grid stability and oscillation damping in utility networks
• Integration with FACTS and HV systems

Installation and interface

• Grid connection through coupling transformer and series insertion
• Interfaces: control and communication protocols for SCADA and protection systems
• Protection: built-in monitoring and protection functions

Ordering and documentation

• Available options and ratings on request
• Consult manufacturer for datasheet, installation manual and compliance certificates
• Contact Ingeteam to obtain technical specifications and integration support
