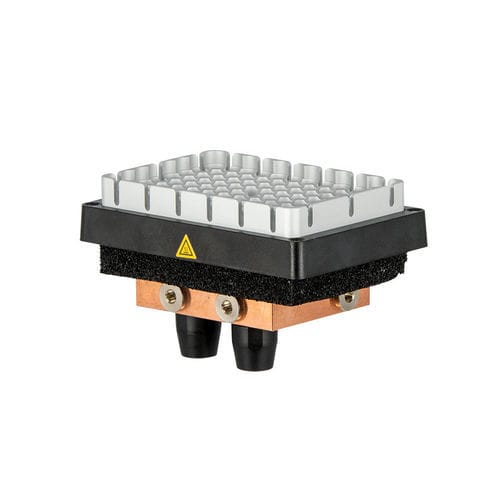

Sample cooler-heater CPLC

Heat and cool samples precisely, without fear of contamination. Our Peltier-based heater/cooler uses liquid cooling for near-silent operation without generating waste heat or air on deck. On-deck heater/coolers can be problematic when working without on-deck air-conditioning. Labs report problems with on-deck waste heat that increases the ambient temperature of the deck, air movement from fans increases the risk of sample cross-contamination, and there’s excessive noise when many devices work together. Cold plate liquid cooling moves heat dispersal off deck and can solve those problems. OFF DECK LIQUID COOLING The CPLC replaces the usual on-deck heat sink/fan combination with liquid heat exchangers and transfer heat to the environment via a heat exchanger outside the deck. For fast heating and cooling steps that require high precision there’s less risk of disturbance or contamination from waste heat generation or air movement from fans. ON DECK ACCURATE HEATING & COOLING The CPLC uses a two Peltier heating/cooling capability. In a multi-unit setup, the Peltiers enable individual heating/cooling settings using just the one heat exchanger. The heat exchanger can be a passive ambient temperature unit, or an active cooler in case of very high/low temperature setting, including sub-zero. Temperature range 4° C to 105° C, uniformity of 0.5 K, accuracy of 0.3 K.
