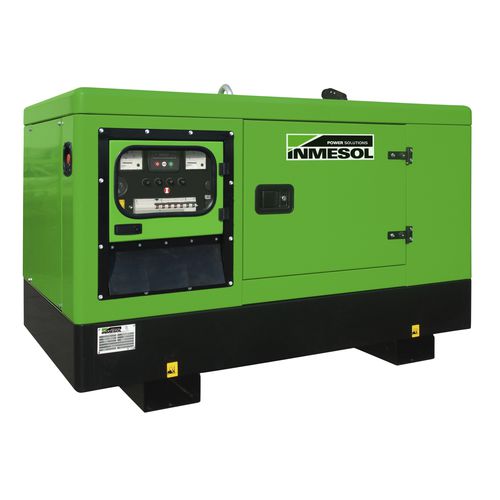

Single-phase generator set AK-14,IK-14
dieselstationary50 Hz

single-phase generator set
single-phase generator set
single-phase generator set
Add to favorites
Compare this product

Characteristics

Phase
single-phase
Motor type
diesel
Portability
stationary
Frequency
50 Hz
Options and accessories
with cover
Cooling system
air-cooled
Applications
industrial
Rotational speed

1,500 rpm (9,425 rad.min-1)

Power in kVA

12.3 kVA, 13.5 kVA (16.72 hp)

Description

The “INMESOL” 12 - 14 kVA generator (INDUSTRIAL MANUAL), is an electrical energy generating machine with diesel KOHLER KDW1603 engine, 50 Hz - Single-phase, alternator model SINCRO SK 160 CB1, 230 Voltage, which is used in places where there is no mains supply or when there is a MAINS failure. The mobile elements, distribution belt, fan, etc., and those parts which reach high temperatures during operation, exhaust manifold, etc, include their corresponding protections, in compliance with the requirements of the Machinery Directive 2006/42. The IK-14 genset holds the “CE” marking, and the corresponding Declaration of Conformity is issued with each of them, in which it specifies that the machine complies with R.D 842/2002 Low Voltage Regulations and with the European Directives:
