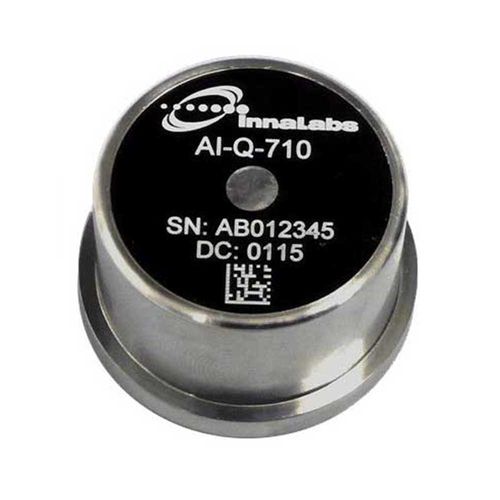

Rugged accelerometer AI-Q-710

compactwith integrated temperature compensationvoltage output

Ideal for Inertial Measurement Units The AI-Q- 710 is a tactical grade accelerometer, built with Quartz Flexure technology. Due to its analogue voltage output and excellent long-term repeatability, the AI-Q- 710 is an optimal solution for demanding navigation and flight control systems. Key Performance Features •Tactical grade performance •Good Bias •High input range •High stability under temperature changes •High reliability •Internal temperature sensor for thermal compensation •Compact, rugged design Specification Parameters Units Values Input Range g ±30 Bias mg <8 One-year Composite Repeatability µg <1200 Temperature Sensitivity µg/°C <70 Scale Factor mA/g 1.23 to 1.43 One-year Composite Repeatability ppm <1200 Temperature Sensitivity ppm/°C <200 Axis Misalignment µrad <2000 Vibration Rectification µg/g2 RMS <50 (50-200 Hz) <100 (200-750 Hz) <150 (750-2000 Hz) Intrinsic Noise µg RMS <7 (0-10 Hz) <70 (10-500 Hz) <1500 (500-10000 Hz) Operating Temperature °C -55 to +96 Shock g 250
