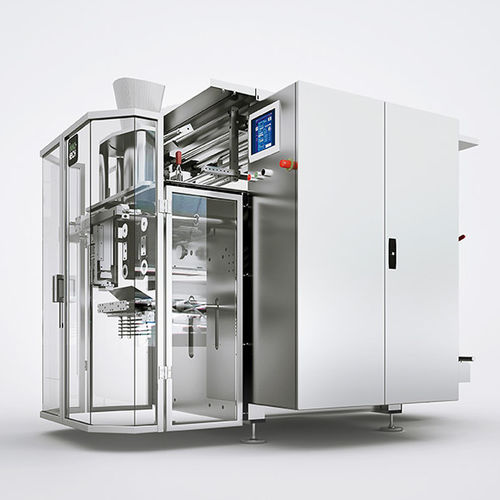

Vertical bagging machine REVO S Series
VFFSPLC-controlledhigh-speed

vertical bagging machine
vertical bagging machine
Add to favorites
Compare this product


Characteristics

Type
vertical
Technology
VFFS
Other characteristics
PLC-controlled, high-speed, continuous-motion, with multi-head weigher, ultrasonic

Description

• For all usual bag types as well as special shapes • Low-wear welding and sealing systems • Heat sealing, permanently heated sealing system or impulse sealing, ultrasonic sealing (optional) • Safely sealed seams thanks to high sealing jaw pressure – cross jaw drive with servo motor, variable opening width (storable in the program), welding and sealing pressure adjustable (storage optional) • Menu-supported operation via color touch screen, IPC control, memory for 300 programs (optionally up to 1,000), different levels of access (password protected), data backup / transfer via USB, memory card or Ethernet interface optional • All models with SIEMENS PLC (S7 series) • Safe film tracking by standard automatic film tracking control • Easy to clean and easily accessible, no painted parts • Cabinet made of stainless steel • Low maintenance, high availability, minimized set-up times • Synchronization with multi-head weighers without loss of performance • Intermittent mode for the production of high-quality flat-bottom bags • Fast change of film roll by pneumatically actuated clamping and joining station (option) • Vacuum film transport (option) • ZIP, labeler, printer (options) • Edge sealing (option) • Remote maintenance (optional)
