Passive exoskeleton Soft-Light2

for the reduction of muscle fatiguelumbar supportfor medical use

Product overview

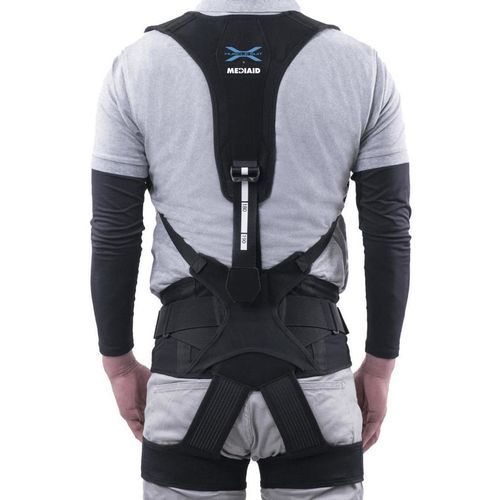

The Soft‑Light2 from INNOPHYS is a passive muscle suit designed to reduce lower‑back strain during lifting, carrying and sustained forward‑leaning postures. Engineered for everyday workplace use, it combines breathability, easy wearing and simple maintenance with an improved fit to support a wide range of body shapes.

Scenes of use

• Lifting and carrying operations in manufacturing and logistics
• Posture support in caregiving and healthcare settings
• Forward‑bending tasks in agriculture and horticulture

Key features

• Support for lifting movements — Linked components transfer load from the lower body to the upper body to help reduce lumbar strain during lifts.
• Support for standing, forward‑leaning and half‑crouched postures — Waist supporter increases intra‑abdominal pressure and stabilizes the trunk in varied working postures.
• Comfort‑focused design — Worn above the knees to preserve leg mobility; slim profile compatible with confined spaces and cooling garments.
• Quick wear and one‑touch switching — Easy to put on with a one‑touch switch between support ON and OFF to allow breaks or driving without full removal.

Evolution from previous model (Soft‑Light)

• Enhanced support via redesigned stretchable parts — Improved layout and a reinforced waist belt with an easier adjuster for stronger support.
• Improved fit and stability — Power Grip Texture reduces slippage; height‑adjustable and removable chest belt refines fit.
• Broader size adaptability — Adjustable straps fit users 150–190 cm tall; waist coverage 65–115 cm across sizes M–LL.

How to wear (steps)

• STEP 1 — Adjust the height straps to match user height and insert your arms through the main belt.
• STEP 2 — Pull and secure the thigh belts; fasten near the top of the thighs to prevent riding up.
• STEP 3 — Tighten the waist belt and reinforcement belt.
• STEP 4 — Adjust shoulder joint tapes and chest belt to obtain a snug fit.

Size guide (waist size)
Size — Applicable waist size
M — 65–85 cm
L — 80–100 cm
LL — 95–115 cm
※ Applicable height range: 150–190 cm.

Technical specifications

• Model name: Soft‑Light2
• Brand: INNOPHYS
• Product type: Power Assist Suit (PAS), passive type (stores and releases user movement energy; no external power)
• Main purpose: Reduce lumbar strain during forward‑leaning postures and lifting; assist in preventing lower‑back pain
• Wearing position: Worn above the knees
• Support features: Waist supporter with reinforced belt and adjuster; shoulder straps; thigh belts; cross tapes to reduce lumbar load
• Fit & adaptability: Height range 150–190 cm; waist range 65–115 cm; sizes M (65–85 cm), L (80–100 cm), LL (95–115 cm)
• User operation: One‑touch switching between support ON and OFF
• Maintenance & comfort: Designed for breathability and daily wearability
