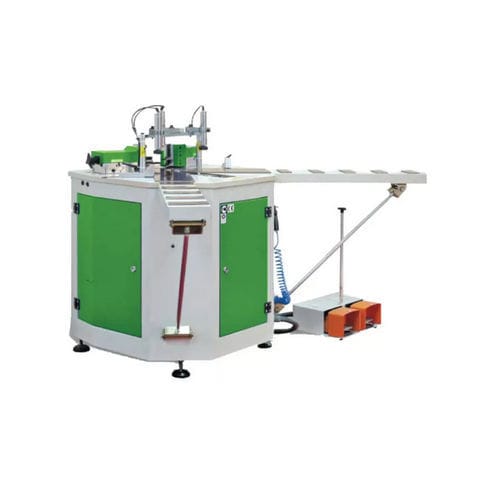

Aluminum profile corner crimping machine AS 456

semi-automaticpneumaticfoot-operated

Joining the corners of two aluminium profiles with a corner cleat placed inside by applying air pressure. Pneumatic working mentality. 2 heads supplied with knifes adjustable in width-height-depth. Pneumatic crimping by the special system ensures synchronous movement of both of the heads at the same time. Machining Dimensions Minimum profile height: 60 mm. Maximum profile height: 140 mm. Maximum profile width: 140 mm. Spindles Air Pressure: 6.5 Bar Hydraulic middle support clamping: 100 Bar. Crimping power: 3.250 Kg. X 2 heads Electrical Box and Controller Terminal The electrics box is welded at the side of the machine body. The machine is controlled viaq foot pedals. Standard Equipment Hydropneumatic middle support for clamping the frames 3 X vertical pneumatic clamps ensure correct positioning. Side stops for proper alignment. Footswitch control with 2 pedals. Supporting arms for profiles and kits of pressing knives.
