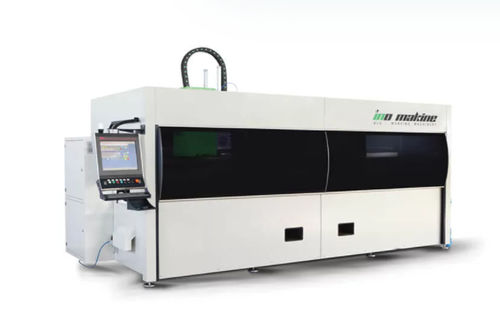

3-axis CNC machining center Ino XC 2000/34

universalbridgefor aluminum

The Compact Design CNC profile machining center with 3 controlled axes X-Y-Z. The machine is mainly designed for processing on aluminium profiles. Apart from aluminium, it can also process any kind of light alloy profiles with the help of dedicated customized cutters. The bridge that is carrying the high speed electrospindle is moving on linear guides by the brushless servo motors independently from the drive and process any kind of shape on the profiles. Thanks to the optional horizontal double-sided electrospindle it is possible to machine from the front and from the back of the profile. The CADCAM software is a customized tool for “ino machinery” profile machining centers. The pneumatic reference point tilt up and down automatically according to the machine’s working cycle. There are 6 pieces of profile clamping units, that are positioned manually by the operator according to the places that the production software decides. Thanks to the automatic positioning of the clamps option, the bridge can also position the clamps itself. The cabin enclosure covers move automatically up and down when the machine is on process and stops processing. The length of the profile is entered, each hole or slot or free shape is recorded as a macro, then these macros are introduced as the operations to be performed on the profile. These macros are selected and placed on the profile. In case the same operations shall be carried out on different profiles, the software will set the same operations parametrically on different length, prepare the machining program by making all calculations automatically and show the simulation of the machining.
