Double-tube linear axis VDSD series

manualaluminum

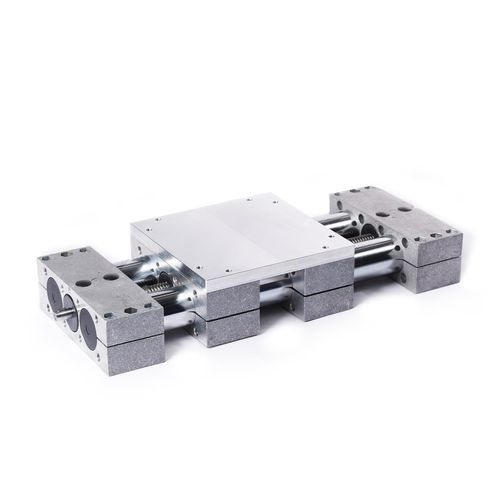

The guide tubes of the double tube linear units VDSD are made of chrome-plated steel tubes. The aluminum end pieces connect the tubes and form a solid linear guide together with the guide element. A continuous spindle with ball bearings on each side is installed in the center. Together with the double guide element, the affixed spindle nut moves linearly along the spindle thread. Double tube linear units have high torsional stiffness and can handle high weights and torques. The double guide element distributes the load among four guide points, allowing for higher loads. Depending on the design, the part to be moved is fastened to the guide element or the guide element itself is installed at the place of use such that the entire linear unit moves together. The accessories are not included with the linear units. On request Additional following guide elements Guide element connector plates Multiple guide elements with scissors synchronization Bellows covers
