Thickness measuring system

diametercircumferencelaser

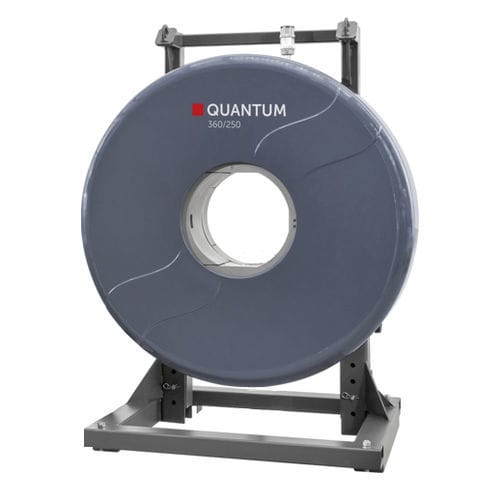

Terahertz technology uses the latest THz ultrashort pulse laser technology. This allows the measurement of layer thicknesses from 100 µm with a measuring rate of 100 Hz. Terahertz lies in the electromagnetic spectrum between infrared radiation and microwaves. In QUANTUM systems, the terahertz pulses are generated optically with the aid of a laser, thus achieving a very high frequency with a wide bandwidth. Main applications are the measurement of thin films or multilayer measurements. In the inline systems, a sensor reverses around the pipe. Thus, the coverage corresponds to a full 360° over the entire circumference of the pipe. Furthermore, due to the low photon energy, terahertz is not ionizing. Further advantages/features: High measuring frequency and large wall thickness measuring ranges Wall thickness, diameter, and multilayer measurements Process analysis/process automation and complete documentation in database system Standardized process data interface (OPC-UA) Automatic centering of the measuring mechanics and automatic focusing of the THz sensor
