Diameter measuring system iXRAY

thicknessX-rayfor plastic pipes

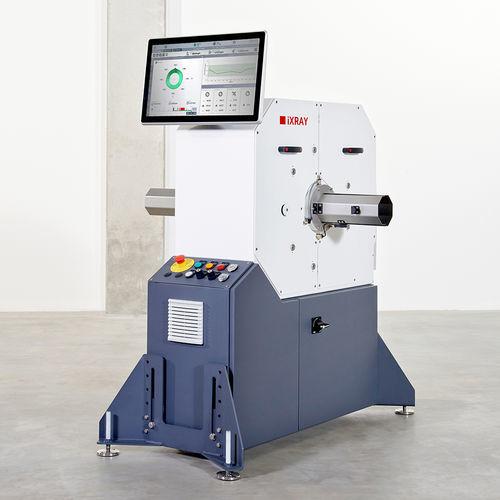

The iXRAY solves almost all measuring, automation and documentation tasks for single and multi-layer pipes and hoses. Thanks to a precise spatial resolution and repeatabilities in the µm range, the system reliably generates exact measurement data. At high line speeds, the X-ray system - optionally two or three axes - delivers precise measurement results. The standard systems are available for pipe dimensions from 1 to 63 mm. The iXRAY series is user-friendly and the line operator only has to select the pipe, hose, or cable recipe to start the measurement. Highest line efficiency while saving raw material is achieved by combining it with gravimetric solutions and the proven iNOEX process components. This makes the iXRAY X-ray systems a complete solution for the automation of extrusion lines. Furthermore, the X-ray units do not present any hazard to the operator. The radiation output is far below the permitted legal limits and other safety aspects ensure safe use. Extensions and options: S-min control Thermal/mechanical die head centering Foldable radiation protection tubes Air shower Pipe guiding Mass throughput control* Weight per meter control via haul-off/extruder* Thin section control* Ramp function* Further advantages/features: Measurement of wall thickness distribution, inner and outer diameter, ovality and eccentricity Up to 6 wall thickness values on the pipe or hose circumference Up to 3 diameter axes at 120° angle High repeatability High precision X-ray tubes with anode voltage up to 60 kV Non-contact measurement, no seal, and no dimension-dependent accessories
