Vertical automatic storage system SVL-4000

VLMvertical lift modulebox

Overview

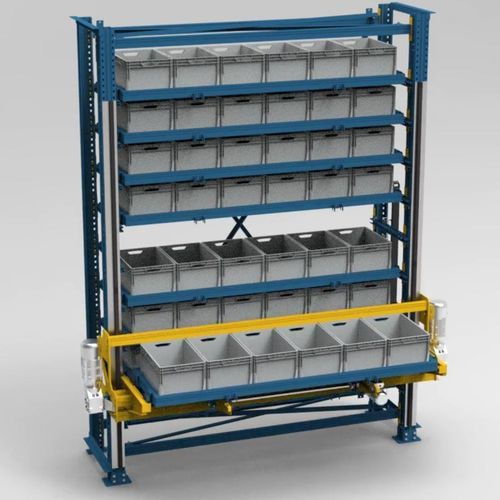

StackIT SVL-4000 is an automated vertical lift module for components, spare parts and production materials. The goods-to-person system increases usable storage density without expanding floor area and is designed for continuous industrial use.

How it works
The operator selects an article or scans a work order; the unit retrieves the correct tray and presents it at an ergonomic picking window. The operator picks the items guided by quantity and location; inventory and ERP/WMS records update automatically.

Basic configuration
Width: 3.8 m
Depth: 2.1 m
Height: 4.0 m
Trays: 9
Euro boxes / tray: 6
Capacity: 54 boxes
Note: Width & depth include safety fencing. Capacity = 9 trays × 6 Euro boxes (600 × 400 mm).

Who it is for

• Manufacturing
• Workshops & repair
• Warehousing & logistics
• Technical & mechanical teams
• Maintenance teams

What you'll store

• Spare parts
• Electrical components
• Machine-building parts
• Tools & fixtures
• Maintenance material

Software & controls
Every StackIT ships with manual controls; optional on-board WMS provides article search, work order scanning and stock management. Connects to existing ERP/WMS via standard connectors. Available features include dashboard, warehouses, stock, articles, work orders, reservations, agents and manual control.

Picking cycle (summary)

• Select — Operator picks an article or scans a work order on the touchscreen.
• Retrieve — SVL-4000 brings the correct tray to the ergonomic picking window.
• Pick — Operator takes the material guided by quantity and location.
• Update — Inventory and ERP/WMS records update automatically; no paperwork.
• Next — The next tray is delivered if the order requires additional lines.

Benefits

• Recover up to 80% of floor footprint versus traditional shelving.
• Reduce search time — goods-to-person delivery eliminates walking and manual searching.
• Improve inventory control — every movement is logged for real-time accuracy.
• Control access by user — role-based permissions determine tray access.
• Connect to ERP/WMS — standard integrations keep existing systems as single source of truth.
• Optimize workspace — compact footprint replaces extensive racking layouts.

Capacity & compatibility
Built around standard Euro containers (600 × 400 mm). No proprietary bins: use dividers, cross dividers, lids & covers, insert trays, label holders and ESD variants to accessorise boxes.

Technical specifications

• Model: SVL-4000
• Example external dimensions: Width 3.8 m · Depth 2.1 m · Height 4.0 m
• Tray count: 9 trays
• Euro boxes per tray: 6 (600 × 400 mm) — total capacity 54 boxes
• Motorised vertical lift delivers trays to the picking window on demand
• Industrial HMI touchscreen / on-board PC for guided picking, put-away and stock lookup
• Optional barcode scanner for articles and work orders
• Role-based user login & permissions (access control to trays)
• ERP / WMS integration via standard connectors
• Modular shelf configuration — adjustable tray heights and dividers for mixed part geometries
• Remote diagnostics and condition monitoring
• Industrial PLC control for continuous-duty operation
• Safety guarding including light curtains and interlocks
• Example machine footprint shown (media note): H 2400 · W 1100 · D 820 mm
