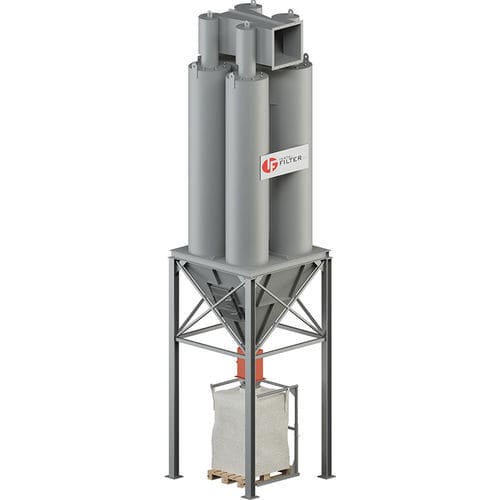

Cyclone industrial dust collector OK series

One of the simplest and the oldest gas de-dusting methods is gravitational separation of dusts from a gas stream. Devices using simple physical rules (rapid change of flow direction, centrifugal power, spiral traffic etc.) in the gas de-dusting process are called mechanical units. During de-dusting process, in OK cell devices there is applied a rule of rapid change of gas flow direction. In a chute there is fastened an additional shield which eliminates effect of suction of dusts from the chute. Location of the shield can be regulated depending on required efficiency of the dust extracting unit. Chamber dust extracting unit can be applied as a first de-dusting stage, before such units as bag filters or cyclo-filters. They are used since in extracted air there may exist thick and abrasive dusts and consequently, there exists a risk of over-consumption of the filtrating material in a main de-dusting unit. OK type de-dusting units, by precipitation of thick fractions of particles, decrease in filtrating material loading rate. This process has a positive impact on service life of the material. Chamber OK dust extracting units may also play a role of separators of particles in case of a process which re-uses the thicker fractions. Such cases occur in progress of, among others, production processes (blasting lines, bituminous compound etc.). Simple structure of chamber dust extracting units makes that their connection sizes are comparable to sizes of connection ducts supplying dirty utilities. Standard series for OK dust collectors comprises erection of them from OK100 to OK1500, efficiency range.
