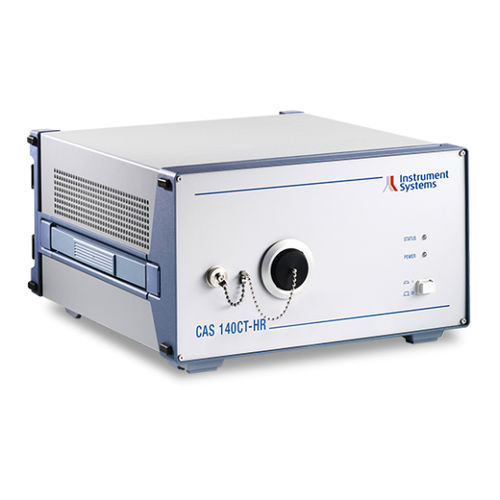

Spectroradiometer for laser applications CAS 140CT-HR
CCDhigh-endUSB

spectroradiometer for laser applications
spectroradiometer for laser applications
Add to favorites
Compare this product


Characteristics

Other characteristics
CCD, high-end, USB, high-resolution
Domain
measurement, laboratory, for research and development, for laser applications
Wavelength

Min.: 805 nm

Max.: 1,006 nm

Description

High-resolution array spectroradiometer for laser and VCSEL The high-resolution CAS 140CT-HR spectroradiometer is based on Instrument Systems successful CAS 140CT series of array spectroradiometers. It was developed specially for the evaluation of narrow-band emission sources (laser, VCSEL) and offers extremely high spectral resolution with short measuring times. The cooled CCD detector enables complex spectral measurements, also of extremely short light pulses, with low dark current and low noise. Since longer integration times are possible with the CAS 140CT-HR, it is also suitable for very weak light sources. Like all CAS models from Instrument Systems, the CAS 140CT-HR also has a PTB traceable calibration. The USB standard interface can be used via a PCIe interface for extended trigger options. An integral density filter wheel and aperture for dark measurements enable fully automatic measurements while ensuring an extremely high dynamic range of the detector. SpecWinPro software from Instrument Systems is available for comprehensive measurements in the lab. Additionally, CAS 140CT-HR models are compatible with DLL and LabVIEW® drivers for integration in customized programs and production environments. - Spectral solution up to 0.2 nm FWHM (0.08 nm data point interval) - Typically 80, 120 or 160 nm wide measuring ranges in the spectral range of 800-1000 nm (further measuring ranges <800 nm on request) - Active cooled high-end CCD detector for highest measurement sensitivity, dynamic range and stability - Integral density filter wheel for an exceptionally wide measurable intensity range
