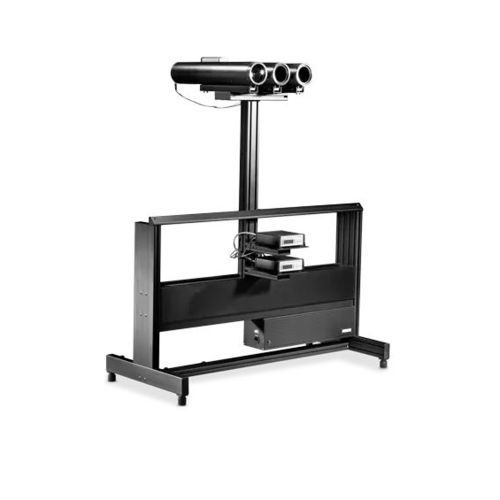

Digital luminance meter LM 20

digital luminance meter
digital luminance meter
Add to favorites
Compare this product




Universal solution for conformity analysis conforming to standards ECE R4 and SAE J587 The LM 20 was developed for die standard-compliant measurement of luminance of vehicle registration lighting (license plates) in conjunction with an AMS goniophotometer system from the Optronik line from Instrument Systems. The luminance meter consists of a tube with special measurement optics for stray light reduction, a digital DSP 10 photocurrent amplifier and an LED alignment device for precise focusing on the reference surface on the test object. It meets the requirement of classification A (high accuracy) pursuant to DIN 5032-7 for luminance meters. The instrument focuses precisely on a measuring field with a diameter of 25 mm at a distance of 3.162 m. It is fully integrated via CAN-bus into the other components of an AMS goniophotometer system, ensuring convenient operation of the measurement set-up in positioning on the measuring fields. Display range 1,000,000 cd/m² with a resolution of 0.02 cd/m² in the most sensitive measuring range Connection to the AMS goniophotometer via CAN-bus; display of readings directly on the AMS controller LED alignment device facilitates targeting on measuring points Special measurement optics for the suppression of stray and extraneous light


24 Pages
