Semiconductor temperature sensor DS18B20
insertiondigitalUSB

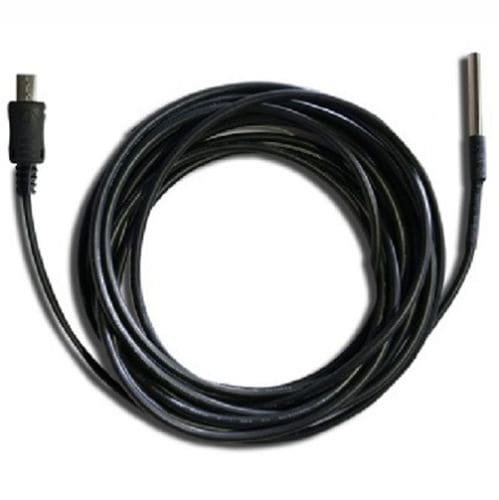

Semiconductor temperature sensor - DS18B20 - Instrumentys - insertion / digital / USB
Semiconductor temperature sensor - DS18B20 - Instrumentys - insertion / digital / USB
Add to favorites
Compare this product
Go to the Instrumentys website for more information

Characteristics

Technology
semiconductor
Mounting
insertion
Output
digital, USB
Other characteristics
cable
Temperature

Min.: -55 °C
(-67 °F)

Max.: 125 °C
(257 °F)

Probe diameter

6 mm
(0.2362 in)

Description

Presentation
  • UBIBOT DS18B20
  • Digital temperature sensor for external use


Range and accuracy
  • Temperature: -55°C to 125°C
  • Accuracy: ±0.5°C (for the range -10°C to +85°C)


Dimensions and cable
  • Probe length: 50 mm
  • Probe diameter: 6 mm
  • Cable length: up to 5 meters (depending on variant)


Power and connectivity
  • Power supply: 3–5 Vdc
  • Connector: Micro USB
  • Communication protocol: One Wire


Models / Variants
  • DS18B20-3M
  • DS18B20-5M
  • DS18B20-10M
  • DS18B20-15M
  • DS18B20-3M-F
  • DS18B20-3M-JACK
  • DS18B20-5M-JACK
  • DS18B20-3M-F-JACK


Features / Technical specifications
  • Commercial reference: DS18B20
  • Measurement range: -55°C to 125°C
  • Specified accuracy: ±0.5°C (-10°C to +85°C)
  • Probe length: 50 mm
  • Probe diameter: 6 mm
  • Cable length: up to 5 m (variant)
  • Power supply: 3–5 Vdc
  • Connector: Micro USB
  • Protocol: One Wire
  • Available variants: DS18B20-3M / 5M / 10M / 15M / 3M-F / 3M-JACK / 5M-JACK / 3M-F-JACK
  • Indicative price excl. VAT (depending on variant): €18.50 to €68.00
