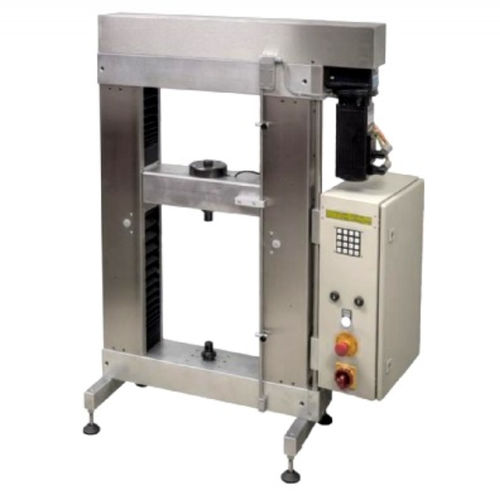

Compression testing machine IJM-50KN-D700tensiletension/compressioncomputer-controlled
Add to favorites
Compare this product
Characteristics
- Test type
- compression, tensile, tension/compression
- Operating mode
- computer-controlled
- Test material
- for metallic materials, for plastics, for composite materials, for workpieces
- Sector
- industrial, for laboratory, for research and development
- Technology
- servo-electric, strain gauge
- Other characteristics
- high-stability, double-column, with measuring device
Description
Description
The IJM-50KN-D700 bi-column testing machine is designed for demanding tensile and compressive mechanical tests. Suitable for laboratories, R&D and industrial quality control, it performs tests on metals, composites, engineering plastics and assembled components. The system delivers reproducible results through a precise, high-rigidity design and includes a load cell and Windows software for real-time curve display and data analysis.
Typical applications
Key features
Technical specifications
The IJM-50KN-D700 bi-column testing machine is designed for demanding tensile and compressive mechanical tests. Suitable for laboratories, R&D and industrial quality control, it performs tests on metals, composites, engineering plastics and assembled components. The system delivers reproducible results through a precise, high-rigidity design and includes a load cell and Windows software for real-time curve display and data analysis.
Typical applications
- Tensile and compression testing of materials (metals, composites, engineering plastics)
- Quality control in laboratory and production environments
- R&D for mechanical characterization and component validation
Key features
- Bi-column frame ensuring alignment and high stiffness
- Smooth, controlled motion under full load
- Windows software provided for data acquisition and real-time visualization
- Load cell included
Technical specifications
- Maximum force: 50 kN
- Stroke: 700 mm (1200 mm version available as option)
- Clear test width: 425 mm
- Test speed: 0.033 to 1050 mm/min
- Motor: AC-Servo Stöber – 1600 W
- Power supply: 380 V – 10 A
- Load cell: included
- Software: Windows (supplied)
- Frame: bi-column, precision alignment
