Humidity data acquisition system ALMEMO® MA5690CPU

temperaturevoltageintegrated

Description

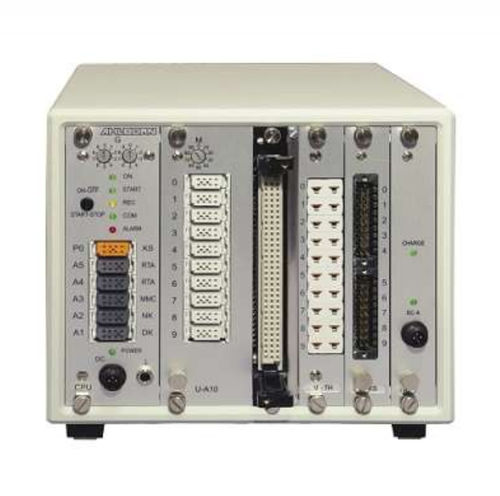

Data logger ALMEMO® MA5690CPU.

Overview
The AHLBORN electronics range (ALMEMO®) is a modular data acquisition system known for its intelligent connector system that enables measurement of multiple physical quantities with the same acquisition unit. The MA5690CPU is a bench data acquisition unit equipped with a CPU board integrating the measurement circuitry and output connectors, designed for industrial and laboratory applications.

Main features

• Same measurement technology and functions as the ALMEMO® 5690 series
• CPU board with integrated measurement circuitry and output connectors
• Up to 100 measurement inputs / 100 measurement channels standard
• Option to add switching cards for measurement point multiplexing
• Option XU: passive measurement circuit boards
• Option XM: active measurement circuit boards
• Expandable up to 190 inputs / 250 measurement channels
• Memory connector for Micro‑SD card
• Modular system compatible with ALMEMO® connectors

Related documents
Technical guides and brochures (product sheets and ALMEMO® connector guides) are available for download to assist in selecting and configuring compatible connectors and modules.

Technical specifications

• Type: bench data acquisition unit / data logger
• Model: ALMEMO® MA5690CPU
• CPU board integrated with measurement circuitry and outputs
• Measurement inputs: standard up to 100 inputs / 100 channels
• Expansion: up to 190 inputs / 250 channels
• Extension cards: switching cards for measurement points
• Card options: XU (passive), XM (active)
• Memory: Micro‑SD card connector
• Compatibility: ALMEMO® connectors (select according to sensor signal)
• Calibration option: delivery possible with COFRAC calibration certificate (option)
