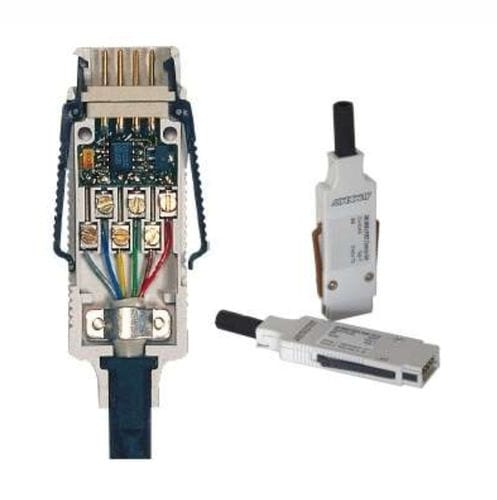

Electrical power supply connector Connecteur ALMEMO®

rectangularplug-incurrent

Description
ALMEMO® connector for DC voltage and DC current inputs. The ALMEMO® connector concept: multiple sensors and probes, one measurement instrument. The ALMEMO® measurement system reduces instrument proliferation by offering a multifunction device compatible with a wide range of probes, sensors and signals accessible via the ALMEMO® connector. The connector plugs into any measurement input of an AHLBORN instrument. Probe data are stored in the smart connector (probe identity via EE-PROM), avoiding additional configuration at connection and enabling immediate Plug and Play operation.

Main features

• Supports voltage and current signals (input: voltage or current).
• Sensor supply up to 24 V.
• Fast measurement: up to 1000 readings/s (D7).
• High measurement accuracy.
• Probe identity stored in the connector (EE-PROM) for calibration, scaling and standardized naming.
• Sensor error correction at connector level to improve accuracy of standard probes.
• Conversion of standardized signals into engineering units for the measured quantity.
• Plug and Play compatibility with AHLBORN instruments (direct connection, no programming required).
• Programming protection via multi-level locking.

Additional information
The connector allows use of a single connector for multi-parameter probes (e.g. a probe measuring temperature and humidity). For connectors supplied equipped with a probe, factory programming can be performed to guarantee immediate operational connection.

Technical characteristics / specifications

• Input: voltage or current.
• Sensor supply: up to 24 V.
• Measurement rate: up to 1000 readings/s (D7).
• High measurement accuracy (value not specified on source page).
• Probe identification: integrated EE-PROM.
• Functionality: Plug and Play, calibration and scaling of probes via the connector.
• Compatibility: connectable to all measurement inputs of AHLBORN instruments in the ALMEMO® range.
