Protective coating BLUE DPM

for the building industrywaterproofUV-resistant

Overview
Waterproof Blue is a polymer‑modified, water‑based liquid damp‑proof membrane designed for continuous waterproofing and vapour control on horizontal and vertical surfaces. The VOC‑free formulation cures to an elastic, crack‑bridging membrane that adheres during structural movement and resists UV exposure. It is suitable for new build and retrofit work where a seamless, joint‑free barrier is required.

Key points

• Single‑product DPM — no primer or corner tape required in many applications
• Dries to a flexible, crack‑bridging membrane
• Blocks vapour transmission while providing waterproofing
• Resistant to UV exposure for external use
• Roller or brush application for consistent on‑site coverage
• Suitable for tiling over once cured

Suitable substrates
Concrete slabs, block & beam floors, foundation walls, basement floors, kicker block upstands and external masonry surfaces — intended for locations where traditional plastic DPC/DPM would be used.

Application (Summary)

• STEP 1 – Fill joints and transitions around drainage/tube interfaces with a paintable waterproof sealant. If joints are <5 mm, enlarge before sealing.
• STEP 2 – Apply Waterproof Blue in two coats with a long‑pile roller or brush. Coverage (two coats): minimum 800 g/m2 total (approx. 400 g/m2 per coat), depending on substrate roughness. Apply the second coat crosswise to the first after the first is dry; check for full coverage.
• STEP 3 – When the second coat is dry (typically 24–48 hours), tiling may be installed. Suitable adhesives: cementitious glue class C2 or dispersion glue class D2TE (EN 12004).

Performance & Features
Polymer‑modified, water‑based, VOC‑free formulation; forms a monolithic waterproof and vapour‑control membrane; elastic and crack‑bridging; remains adherent under movement; suitable for horizontal and vertical use; can provide radon protection where specified.

Related guides

• Damp Proofing vs Waterproofing: What is the Difference?
• NHBC Standards 2023: Waterproof Membranes as a Tanking System
• Rising Damp: How to Spot It and Stop It for Good

Quality assurance
Installation & QA Record sign‑off sheet (IM‑QA‑09) is available for this product.

Technical specifications

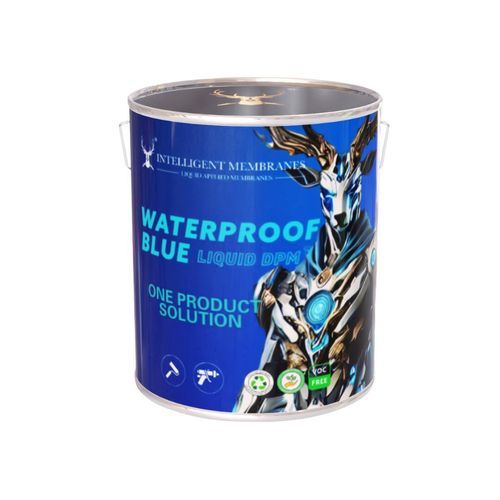

• Commercial name: Waterproof Blue Liquid DPM
• Pack size: 10 kg
• Type: Polymer‑modified liquid membrane (water‑based, VOC‑free)
• Application method: Roller or brush
• Coverage: Minimum 800 g/m2 total (two coats) — ≈400 g/m2 per coat (depending on substrate)
• Coats required: 2 (second coat applied crosswise)
• Typical drying time before tiling: 24–48 hours (dependent on conditions)
• Suitable substrates: concrete slabs, foundation walls, block & beam floors, kicker block upstands, masonry
• Tiling adhesives compatibility: cement glue class C2 or dispersion glue class D2TE (EN 12004)
• Performance attributes: seamless waterproofing, vapour barrier properties, UV resistance, crack‑bridging elasticity, radon protection (certificate available)
• VAT note: price shown excl. VAT
• Variant / SKU: 52608805306708
