Compact photoelectric sensor E3T series
diffuse reflectiveretroreflectivethrough-beam

compact photoelectric sensor
compact photoelectric sensor
compact photoelectric sensor
compact photoelectric sensor
compact photoelectric sensor
compact photoelectric sensor
compact photoelectric sensor
Add to favorites
Compare this product


Characteristics

Sensing mode
diffuse reflective, retroreflective, through-beam
Housing
rectangular
Type of beam
red light
Other characteristics
compact, miniature
Applications
for small parts
Maximum range

1 mm, 30 mm, 50 mm, 70 mm, 200 mm
(1.2 in, 2 in, 2.8 in, 3.3 in, 7.9 in)

Description

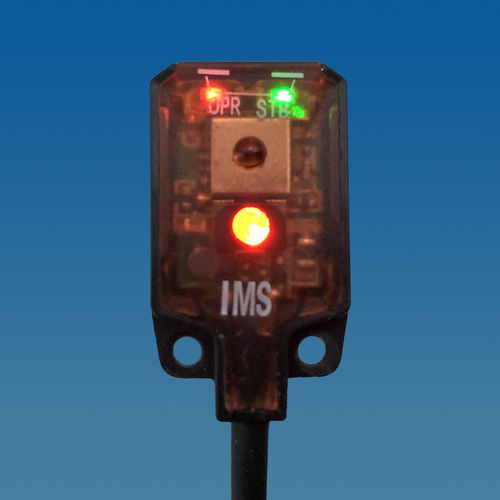

The E3T series ultra-thin type photoelectric sensors are ideal for installation in limited space and compact applications. The sensors measure just 4.3mm in thickness and come equipped with built-in amplifiers. The series is available in diffuse reflective, retro-reflective, and through-beam models to satisfy different applications and can replace BTF of Autonics and E3T of Omron. Features: • Small size: 24*13.5*4.3mm • Build in 100ms Power On Delay eliminate false trigger when power up • Self-Recover Short Circuit protection on NPN/PNP output, Reverse Polarity and Over Voltage Protection on sensor power supply • Self-Recover Short Circuit, Reverse Polarity, Over Voltage Protection • High Performance ASIC based compact Sensor • Light on / dark on

VIDEO
