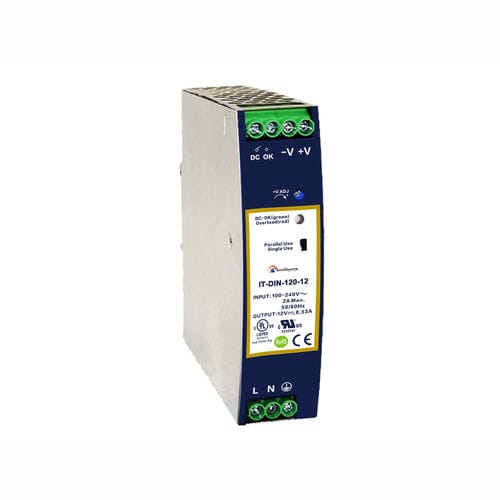

AC/DC power supply IT-DIN-120 seriessingle-outputDIN railbuilt-in
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- single-output
- Mounting
- DIN rail, built-in
- Other characteristics
- redundant
- Input voltage
Min.: 85 V
Max.: 360 V
- Output voltage
12 V, 24 V, 48 V
- Current
2.5 A, 5 A, 10 A
- Power
120 W
- Output frequency
Min.: 47 Hz
Max.: 63 Hz
Description
120 Watts Single Output Industrial DIN Rail Power Supply Series
Universal AC input range(85~264Vac)
Support 1+1 or N+1 redundant system（suggest to use redundancy modules.）
Built-in active PFC,PF>0.95
High efficiency up to 91%
Built-in current sharing function
Built-in current limiting circuit
Output protections: OVP/OLP/SCP/OTP
Wide operating ambient temp (-25℃~70℃)
150% peak load capacity
Easy Fuse Tripping due to High Overload Current
Excellent Partial Load Efficiency
Built-in DC OK relay contact
Can be installed on TS-35/7.5 or TS-35/15
100% full load burn-in test
Suitable for critical applications
Ultra-slim,32mm width
3 years warranty
