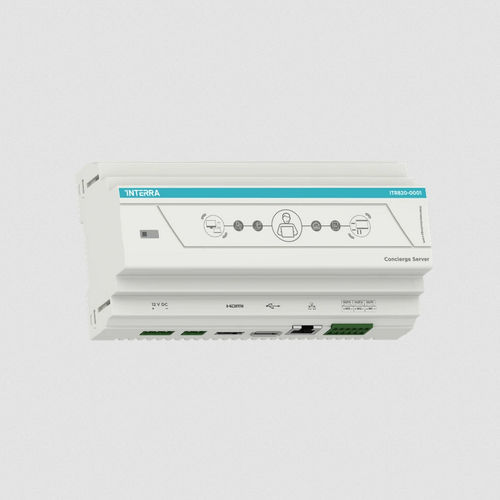

Ethernet device server ITR820-0001

RJ45USBEthernet

Concierge Server is a device that plays an important role in providing comfort and convenience in living spaces by adding a new dimension to residence / hotel services. CPU ARM® Cortex™ A7 Dual Core 2 x 1.2 GHz Memory Min 1 GB DDR3 Storage Min 8 GB with EMMC (sandisk) disc technology Video* HD H.264 2160p video decoding H.264 High Profile 1080p@30fps or 720p@60fps encoding Audio* Integrated HI FI 100dB Audio Codec 2x15Watts speaker amplifier Ana logue Microphone with Noise Cancellation I2S Digital Microphone connector 2 x 3W Speaker KNX Certificated by KNX.org OS Android 4.2.2 / Linux (Debian / Ubuntu / Fedora / Linaro ) Working Temperature - 20 ºC +70 ºC USB 2x USB HOST with USB2.0 spec, 1xUSB OTG SATA* 3Gbps SATA connection with SATA POWER Connectivity 100Mbps Ethernet and USB WIFI Display HDMI 1.3 up to 1920x1080p@60Hz 10.1” IPS LCD with 1280x800 resolution @32bit color* 7” IPS LCD with 1024x600 resolution @ 32bits color* TouchScree Ethernet: CONSIERGE SERVER has a standard 10/100Mbps RJ45 ethernet connec tor. 2x6 Pin I/O: CONSIERGE SERVER has 3inputs and 3 output connector. Both inputs and outputs are optocoupled. Outputs are connected to 12V 5A panasonic relays.
