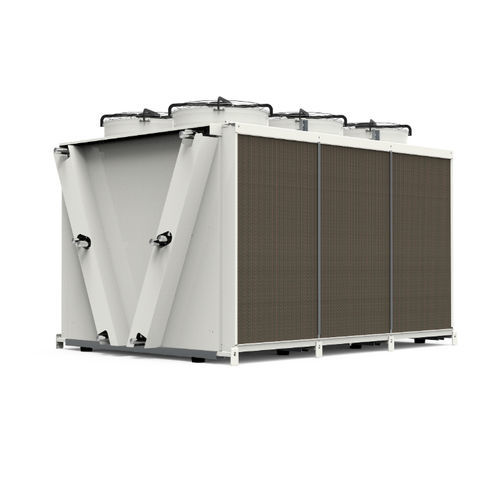

Cooled condenser ICWH

evaporativeammoniaaxial

NH3 IDW condensers work by cooling ambient air through an evaporative pad to 95% relative humidity. Thus, an air temperature similar to the wet thermometer is obtained. Once this air has cooled and saturated, the cools the Condenser or Air Cooler batteries. The flow goes through the cellulose panels, and in this way the temperature of the circulating air is lowered. Adiabatic cooling can be defined as the psychometric process of supplying water to an air mass. The latent heat to evaporate the water is robbed of the sensible heat of the air and is cooled in this way . Advantages of the iDrop System No water treatment needed, no aerosols produced. Water recirculation pumps are not used either, and t all the supplied water evaporates into the air without excess. IDWH condensers features The installed high performance condensing coils can be built in 5/8 “copper tube and 0.4mm. thickness or stainless steel of 5/8 “AISI 304L of 0.8mm. of thickness. They have corrugated aluminum fins with 2.1mm spacing. The frame is made of riveted galvanized sheet metal, and is provided with a floating system that prevents possible breakage of tube due to vibrations or expansion. Thanks to a manifold system with loading shells, the installation is guaranteed to be leak-free. Its axial fans have high-performance projection grilles. In addition, the fans are equipped with 400V / 50hz three-phase motors with 910mm. diameter. External rotor with IP-54 protection degree of double speed and low consumption, in compliance with ErP regulations.
