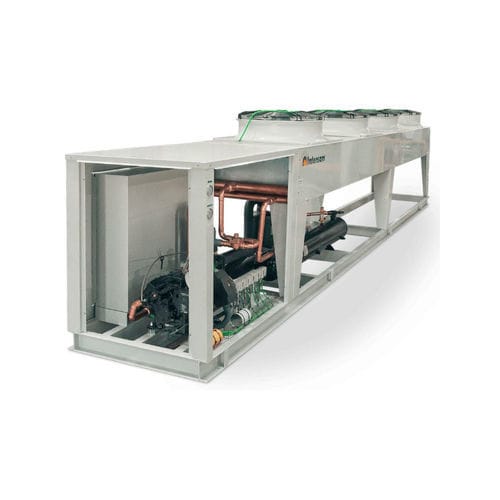

Semi-hermetic condensing unit IBOX series

liquid-cooledexterior

Intersam condensing units are built-in equipment designed for refrigeration applications in cold rooms and in work rooms. They are manufactured for installation outdoors and under extreme environmental conditions. This range is made up of five series, depending on whether they are used in high (IBOX..A + and AM +), medium (IBOX..A and AM) or low temperatures (IBOX..B). Condensing units features Regarding the exterior structure, it is characterized by its highly robust sheet metal chassis and pre-lacquered body painted in RAL color- 9018. In addition, the entire structure is compact, thanks to which vibrations are avoided. It should be noted that all the parts are easily removable in order to facilitate their maintenance. A semi-hermetic piston compressor is installed, which may be of the COPELAND or BITZER brands (400V-460V / III / 50-60Hz) that are provided with suction and discharge valves, crankcase heater and cylinder head fan for negative temperatures. There is also the possibility of mounting 1 to 4 fans of 500 to 800mm in diameter, with external rotor (degree of protection IP-54) and normal speed on standard models. The liquid container is horizontal and is housed under the condenser. Provided with inlet and outlet valves, safety valve, filter and sight glass. Regarding the regulation and safety of these units, they are equipped with double high and low pressure switches, with reset automatic, and differential oil pressure switches.
