protection enclosure / compact / rectangular / glass fiber-reinforced polyester
MINIBOX 21

{{requestButtons}}

Characteristics

  • Construction:

    compact

  • Configuration:

    rectangular

  • Material:

    glass fiber-reinforced polyester

  • Other characteristics:

    high-resistance, equipped, protection

  • Application:

    outdoor, for instrumentation, indoor, for harsh environments, transmitter, for harsh industrial environments, for petrochemical and refinery installations, for offshore applications

  • Protection level:

    self-extinguishing, weather-resistant, UV-resistant, anti-corrosion, robust, chemical-resistant, anti-static, IP65, for harsh environments

  • Width:

    388 mm

  • Height:

    300 mm

  • Depth:

    218 mm

Description

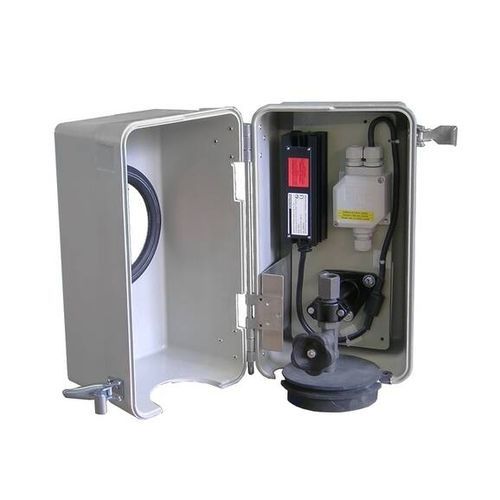

This compact enclosure is sized to provide cost-effective housing to protect close-coupled single-transmitter installations from overheating. It can also be equipped to provide freeze protection. Its two-part oblong-shape measures 21.8 x 30 x 38.8 cm (21 litres / 0.74 ft3). A patented design allows both sides of MINIBOX to be made to open around the hinge by - completely exposing the equipment for easy field access.
Optional designs: with window, additional insulation, anti-static, increased protection class IP65
