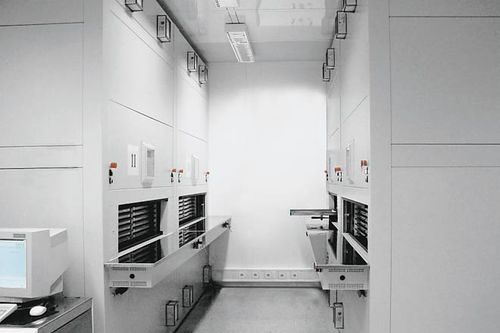

Vertical storage carousel EuroMat

for ceramics

Time-consuming searches are a thing of the past with EuroMat. The required goods are delivered directly to where they are needed. Safely and reliably, thanks to the logical use of the latest technology. The unique double-chain system with eightfold suspension gives EuroMat vertical carousels their unrivalled smoothness with virtually no tilting or lateral deviation. With the dual motor drive system, the vertical carousels can be designed for a maximum load imbalance capability of 100%. This enables you to store and retrieve as you like, without having to concern yourself with unbalanced loading of the chain strands. Various carrier configurations and 100% extendable drawers are available in numerous variants. The right solution for every application. Capacity: 13 carriers Total live load: 2,496 kg (5,502 lb) Carousel dimensions: L 2.28 m (89.8 in), H 2.90 m (9 ft 6 in), D 1.75 m (68.9 in) Carrier dimensions: L 1.53 m (53.2 in), H 0.05 m (2 in), D 0.67 m (26.4 in) Machine type: EM-70-250-304-13-650 Controller: Pre-selector control Capacity: 22 carriers Total live load: 10,340 kg (22,795 lb) Carousel dimensions: L 4.25 m (13 ft 11 in), H 3.74 m (12 ft 4 in), D 1.85 m (72.8 in) Carrier dimensions: L 3.40 m (11 ft 2 in), H 0.30 m (11.8 in), D 0.65 m (25.6 in) Machine type: EM-120-500-254-22-650 Controller: Pre-selector control The INTERTEX EuroMat - Automation Unmanned: State-of-the-art robotic integration When enormous volumes of picks / puts are needed, human error can be minimized and often eliminated through use of robots.
