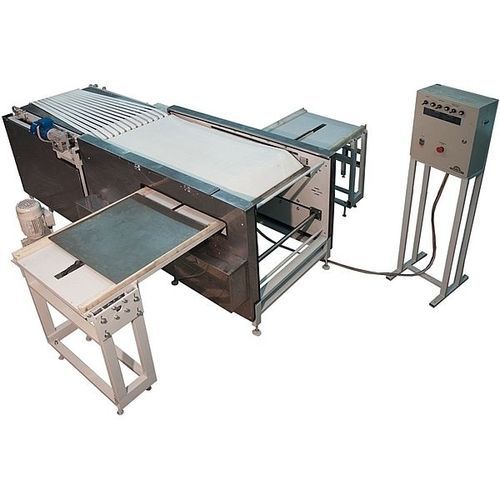

Conveyor belt stacker AS-1

automatic

Our confectionery equipment production is located in Varna, Republic of Bulgaria. All our equipment has received declarations of conformity of our equipment to the requirements of the European Union. Automatic stacker AS-1 is a specialized machine with the main functional task to lay products from the conveyor belt on the stove. The automatic stacker has adjustable feed speed, the number of products in a row on the baking sheet. Careful automated stacking of products for a given distance eliminates their deformation, keeping the commercial appearance. Operating principle of our machine: a hardware is based on two perpendicular conveyors. The first belt conveyor moves the product to the feed zone on the baking sheet. The second chain conveyor moves the baking sheet to the loading zone. When the product approaches the loading zone, the shutter moves it to the baking sheet and returns to initial position for the next cycle. Thanks to its smart design, intelligent control system and high-quality components, our cupcake and muffin baking machine saves you power and money. Work with pleasure on high-quality equipment! Efficiency - rated Dimensions of a baking sheet, mm - 600х600 Supply voltage, V - 380 Installed power, kW - 1 Overall dimensions (LхWхH), mm - 3000х1500х1050 Weight, kg - 700
